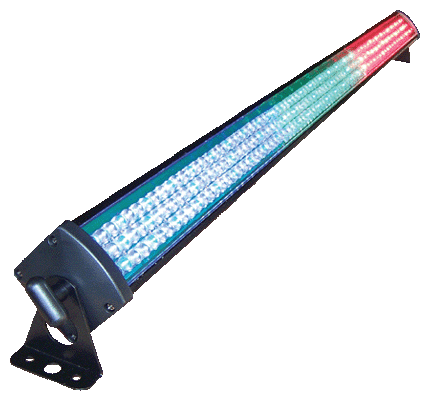

Indoor Led Intelligent Bar
Indoor Led Intelligent BarItem Code / Model Number:
Indoor Led Intelligent Bar
Name: SF-LW02 Indoor Led Intelligent Bar
Product Description Extended Attributes Product Description: Source
Intensive brightness LEDs
252 PCS 10mm LEDs (108 red ,72 green,72 blue)
60-100 thousand hrs Rated Life
Beam angle
35°beam angle of each LED
Colours
16,7million colours (24 bit)
The LEDs used are a mixture of red,green, and blue to produce, via RGB electronic mixing.
White balance pre-programmed via LED control panel
Dimmer,Strobe
Electronic dimmer for light output adjustment
from 0 to 100% (No colour variation)
High speed white or full colour strobe,flash
rate 1-13fps
Mechanical Specification
Height:85mm Width:1070mm Depth:650mm
Weight:3Kg (6.6 lbs)
Shipping size: ( 4pcs/master carton): 110×28×29.5 cm
Gross/weight：19Kg
Thermal
Maximum ambient temperature:40℃
Maximum housing temperature:60℃
Control
Protocol: USITT DMX-512
Control channels: 13
Control options: DMX,Auto-trigger
Operation modes: Master/Slave,Stand alone,Sound
Data in/out: Locking 3-pin XLR
Power supply
Input voltage: 90-250V AC,47-63Hz
Fuse: T2A
Max. Power Consumption: 50VA
Product Description Extended Attributes Product Description: Source
Intensive brightness LEDs
252 PCS 10mm LEDs (108 red ,72 green,72 blue)
60-100 thousand hrs Rated Life
Beam angle
35°beam angle of each LED
Colours
16,7million colours (24 bit)
The LEDs used are a mixture of red,green, and blue to produce, via RGB electronic mixing.
White balance pre-programmed via LED control panel
Dimmer,Strobe
Electronic dimmer for light output adjustment
from 0 to 100% (No colour variation)
High speed white or full colour strobe,flash
rate 1-13fps
Mechanical Specification
Height:85mm Width:1070mm Depth:650mm
Weight:3Kg (6.6 lbs)
Shipping size: ( 4pcs/master carton): 110×28×29.5 cm
Gross/weight：19Kg
Thermal
Maximum ambient temperature:40℃
Maximum housing temperature:60℃
Control
Protocol: USITT DMX-512
Control channels: 13
Control options: DMX,Auto-trigger
Operation modes: Master/Slave,Stand alone,Sound
Data in/out: Locking 3-pin XLR
Power supply
Input voltage: 90-250V AC,47-63Hz
Fuse: T2A
Max. Power Consumption: 50VA
- Place of Origin:
- China
- Brand:
- Sunfrom
- Unit Price:
- USD 100
- Price Terms:
- CIF Huangpu
- Other Price Terms:
- T/T or Western Union
- Packing:
- carton or flight case
- Payment Terms:
- L/C;T/T
- Delivery Time:
- within 3-5 days
- Min Order Quantity:
- 1pc
- Standard / Certificates:
- CE
- Keywords:
- led intelligent bar, wall wash lighting, landcape light
