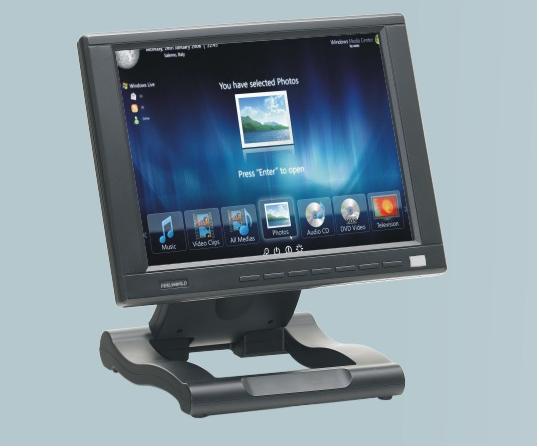

10.4’’ Touch Screen Monitor With DVI & HDMI Input
10.4’’ Touch Screen Monitor With DVI & HDMI InputItem Code / Model Number:
10.4’’ Touch Screen Monitor With DVI & HDMI Input
Model FW104AT
Panel Size 10.4 inch TFT LCD,
Touch Panel 4-wire resistive (USB or RS232)
5-wire resistive for optional
Resolution 800×600 (Up to 1920×1440)
Ratio Aspect: 4:3
Brightness 250 cd/㎡
Contrast 400:1
Viewing angle 45°/65°,65°/65° (L/R,U/D)
Voltage DC12V±15%
Signal input VGA; S-Video; AV,HDMI,DVI
Power consumption ≤12w
Work temperature -20~55℃
Store temperature -30~65℃
Size(mm) 260*220*75.1
Weight 1150g
Panel Size 10.4 inch TFT LCD,
Touch Panel 4-wire resistive (USB or RS232)
5-wire resistive for optional
Resolution 800×600 (Up to 1920×1440)
Ratio Aspect: 4:3
Brightness 250 cd/㎡
Contrast 400:1
Viewing angle 45°/65°,65°/65° (L/R,U/D)
Voltage DC12V±15%
Signal input VGA; S-Video; AV,HDMI,DVI
Power consumption ≤12w
Work temperature -20~55℃
Store temperature -30~65℃
Size(mm) 260*220*75.1
Weight 1150g
- Place of Origin:
- china
- Brand:
- feelworld
- Payment Terms:
- T/T
- Keywords:
- monitor
