Hot-dip Galvanizing Production

Our hot-dip lines offer a choice of horizontal or vertical non-oxidizing type furnaces. The furnaces can be sized purely to provide a clean surface for optimum adhesion of the zinc coating. Or, they can be designed to also anneal strip of various grades from full-hard to deep drawing quality.
Available size range:

Capacity: 100000-200000 ton / year
Speed: 80-150m/min
Materials: Cold rolled steel coil
Coil Weight : 20000 kg
Coil Outer Diameter: φ800-2100mm
Coil Inner Diameter: φ508mm、φ610mm
Thickness : 0.2-1.2mm
Width : 600-1250mm
Energy Sources: Nature gas,LPG,Steam and electricity
Average Galvanizing Thickness: 100-300g/m2
Coating specification: Regular Spangle
Minimized Spangle
Spangle-free
Posttreatment: spraying chromate/roll-coating
anti-fingerprint and lubricant
spraying anti-rust oil/electrostatically spraying anti-rust oil
Quality standanrd: GB2518-88

RIAMB's lines offer a very wide range of features :

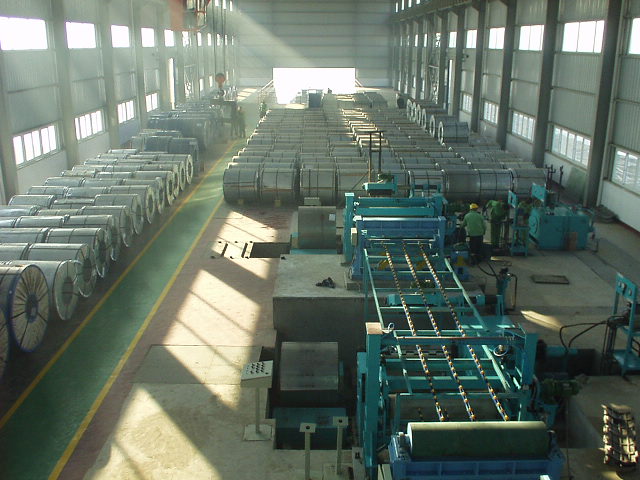

>> Highly automated entry and exit sections that ensure efficient coil handling.
>> Vertical or horizontal strip accumulators.
>> Turret-head edge trimmers.
>> Fixed or shuttle-type scrap choppers.
>> Prep-lap, limited overlap or flash-butt welders.
>> Acid pre-cleaning sections.
>> Steel or ceramic galvanizing pots. These can be of the single-, dual-, or triple-shutter type.
>> Elevating pots are also available for use with fixed furnace snouts.
>> Air or nitrogen coating knives.
>> Mini and zero spangle fixtures, using steam, water/chemicals and zinc dust.
>> Galvanneal furnaces.
>> Closed-loop coating weight gauges for controlling coating thicknesses.
>> Dip, spray and coater-type passivating systems, including resin coaters.
>> Tension-levelling sections and skin pass mills.
>> Level 1, 2 or 3 electrical control systems.
