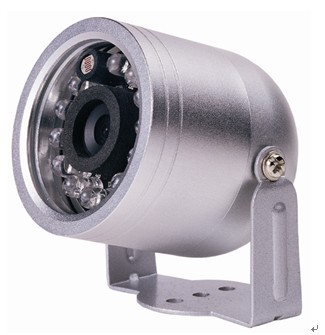

CCTV Camera

Specification:
Pure Sony CCD & Sony DSP
12pcs 5mm IR LEDs for 10~15M Viewing Range
3.6mm fixed Lens with Crystal Filter
IP66 Waterproof Grade
Dual-Glass prevents night viewing reflection and glisten problem

Technique Parameter:
Model: UV-5901R~UV-5905R
Pickup device: 1/3" Color Sony CCD, 1/3" Color Sharp CCD, 1/3" Color LG CCD
Number of pixels: PAL:752(H) x 582(V)
NTSC: 768(H) x 494(V) PAL:512(H) x 582(V)
NTSC: 512(H) x 492(V)
System of signal: PAL/NTSC
Horizontal resolution: 540TV Line 480TV Line 420TV Line
Minimum illumination: 0Lux
IR leds&IR distance: ￠5 IR LED 12pcs,IR distance 10~15m
Lens: 3.6mm board lens
Backlight compensation: Auto
Electronic shutter: NTSC: 1/60~1/10.000Sec PAL: 1/50~1/10.000Sec
AGC: Auto
White balance: Auto
S/N ratio: More than 48Db (AGC off)
Gamma correction: >0.45
Operation temperature: -20℃~50℃
Sync system: Internal/System
Video output: 1.0Vp-p (75Ω, composite)
Power consumption: DC12V, ≤150mA
