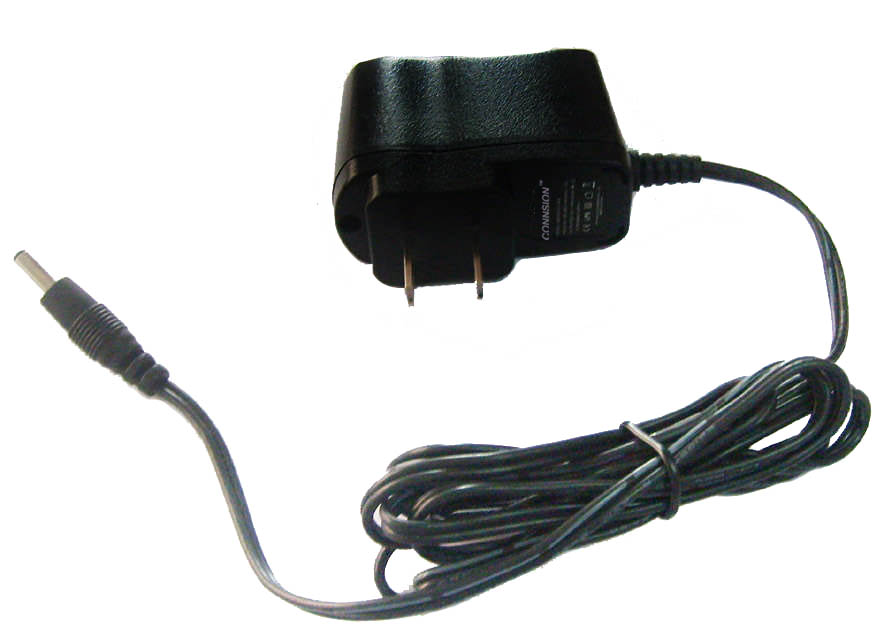

Sell 5W AC adapters series
Sell 5W AC adapters seriesContinuous Selling Item
Sell 5W AC adapters series
C=wall mount type adapter.
YY=VDE=European type plug. YY=UL= American type plug. YY=UK= British type plug. YY=EK= Korean type plug.
YY=SAA= Australian type plug. YY=CCC= Chinese type plug. YY=PSE= Japanese type plug. YY=OTH= Other type plug.
Model Number Output Voltage(VDC) Output Current(A) Output power(MAX) Ripple&Noise
Max(mV) Line Regulation(%) Load Regulation(%) Efficiency
MIN(%)
C5W1VYY 3-4.99V 0-1.66A 5w 80 mV 1% 5% 65%
C5W2VYY 5-6.99V 0-1A 5w 80 mV 1% 5% 60%
C5W3VYY 7-8.99V 0-0.85A 6w 100 mV 1% 5% 62%
C5W4VYY 9-10.99V 0-0.66A 6w 120 mV 1% 5% 65%
C5W5VYY 11-12.99V 0-0.54A 6w 120 mV 1% 5% 65%
C5W6VYY 13-14.99V 0-0.46A 6w 150 mV 1% 5% 65%
C5W7VYY 15-16.99V 0-0.4A 6w 150 mV 1% 5% 65%
C5W8VYY 17-18.99V 0-0.35A 6w 180 mV 1% 5% 60%
C5W9VYY 19-20.99V 0-0.31A 6w 180 mV 1% 5% 60%
C5W10VYY 21-24V 0-0.28A 6w 180 mV 1% 5% 60%
YY=VDE=European type plug. YY=UL= American type plug. YY=UK= British type plug. YY=EK= Korean type plug.
YY=SAA= Australian type plug. YY=CCC= Chinese type plug. YY=PSE= Japanese type plug. YY=OTH= Other type plug.
Model Number Output Voltage(VDC) Output Current(A) Output power(MAX) Ripple&Noise
Max(mV) Line Regulation(%) Load Regulation(%) Efficiency
MIN(%)
C5W1VYY 3-4.99V 0-1.66A 5w 80 mV 1% 5% 65%
C5W2VYY 5-6.99V 0-1A 5w 80 mV 1% 5% 60%
C5W3VYY 7-8.99V 0-0.85A 6w 100 mV 1% 5% 62%
C5W4VYY 9-10.99V 0-0.66A 6w 120 mV 1% 5% 65%
C5W5VYY 11-12.99V 0-0.54A 6w 120 mV 1% 5% 65%
C5W6VYY 13-14.99V 0-0.46A 6w 150 mV 1% 5% 65%
C5W7VYY 15-16.99V 0-0.4A 6w 150 mV 1% 5% 65%
C5W8VYY 17-18.99V 0-0.35A 6w 180 mV 1% 5% 60%
C5W9VYY 19-20.99V 0-0.31A 6w 180 mV 1% 5% 60%
C5W10VYY 21-24V 0-0.28A 6w 180 mV 1% 5% 60%
- Place of Origin:
- China
- Brand:
- Connsion
- Port:
- FOB Shenzhen
- Packing:
- cartons
- Payment Terms:
- ;T/T
- Delivery Time:
- 15
- Min Order Quantity:
- no
- Standard / Certificates:
- CE
