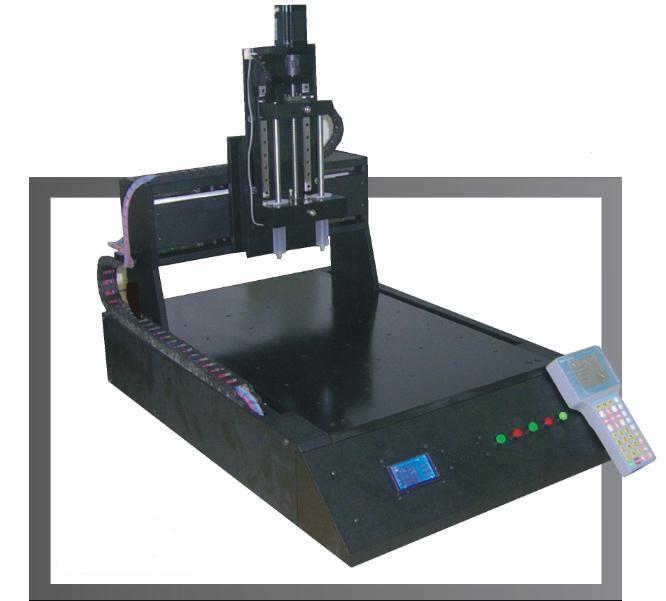

3 Axes Cnc Dispenser
3 Axes Cnc Dispenser, DT-3AA3STItem Code / Model Number:
DT-3AA3ST
3 Axes Cnc Dispenser
3-Axes CNC Dispenseris a ballscrew driving dispensing machine.
This machine can work alone with its one twin ballscew driving syringes for mass volume production and can also integrate with the AB Mix/DSP-001, AB Fluids Mixed Dispenser, for fluids mixing and non-stop dispensing. Also it can can integrate a rotary axis for 4-Axis dispensing as well.
- 3D Precision Desktop Dispenser
- XYZ Working Area: 300x400x100mm
- Precision Ball Screws Driving
- Stepper Motor x 3 units
- Ballscrew Precision Dispensing Head x 1 with two Syringes
or Pneumatic Dispenser as per our style of YK2000.
- DSP Control With LCD Display
- Syringe Inner Diameter: 22mm
- Min Distance Per Step: 0.0025mm
- Repeatability: 0.01mm
- Plastic Syringe 22mm x 4 pcs
- Weight: 200kgs
The standard machine is 3 Axes. Additional cost will be added for 4 Axes or Rotary axis.
This machine can work alone with its one twin ballscew driving syringes for mass volume production and can also integrate with the AB Mix/DSP-001, AB Fluids Mixed Dispenser, for fluids mixing and non-stop dispensing. Also it can can integrate a rotary axis for 4-Axis dispensing as well.
- 3D Precision Desktop Dispenser
- XYZ Working Area: 300x400x100mm
- Precision Ball Screws Driving
- Stepper Motor x 3 units
- Ballscrew Precision Dispensing Head x 1 with two Syringes
or Pneumatic Dispenser as per our style of YK2000.
- DSP Control With LCD Display
- Syringe Inner Diameter: 22mm
- Min Distance Per Step: 0.0025mm
- Repeatability: 0.01mm
- Plastic Syringe 22mm x 4 pcs
- Weight: 200kgs
The standard machine is 3 Axes. Additional cost will be added for 4 Axes or Rotary axis.
- Place of Origin:
- China
- Payment Terms:
- T/T;Cash
- Payment Remarks:
- Payment in Advance of shipment
- Delivery Time:
- Negotiate days
- Min Order Quantity:
- 1 set
- Keywords:
- dispenser, machine
