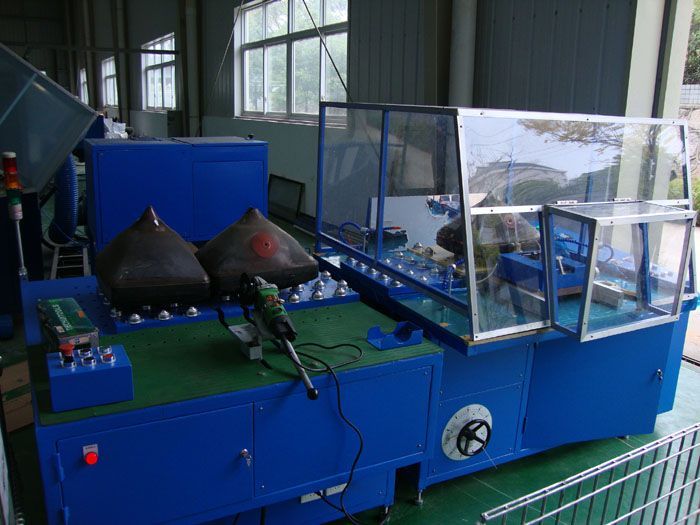

Crt Treatment And Recycling Equipment

1. Technical Introduction
CRT Processing Equipment is a set of equipment which is used to disassemble television and PC monitor. Its process flow includes CRT explosion-proof belt cutting off, insulating glue cutting off, separation of panel and funnel glass and collection of phosphor powder. The entire process is environment-friendly, safe and efficient.

2. Equipment Introduction
CRT is sucked on top of the vacuum chuck at the first step; Then remove electron gun, cut off explosion-proof belt and shear insulating glue; Then heat up conjoint belt of panel and funnel glass by nichrome wire and CRT can be divided into two parts by "heat expansion and cool contraction"; at last collect phosphor powder by exclusive brush sucker. Heating power and time are decided by different type of CRTs. The process flow is shown as below:

Specifications


Items 　 Specifications 　
Model No. RCRT-2 RCRT-3 RCRT-4
Dimension (L*W*H)/mm 2820*2690*1655 5000*4000*1600 7500*4000*1600
Adopted CRTs 14'-33' 　 　
Utility Power 4 wire 3 phase,AC380V,50Hz 　
Controlling Power 2 wire 1 phase,AC220V 　
Air Pressure 0.4-0.6MPa 　
Model No. of Brush Sucker BF502,70L(capacity) 　
Total Power 5kw 7.7kw 9.7kw
Process Capacity 10-15 PC/H 30-45 PC/H 45-60 PC/H
Operators 2 3 4



3. Environmental Protection Standards
A. Emitted exhaust gas reaches national environment protection standards: No exhaust gas emitted after process. Gas emission consists with secondary standard of “Emission Standard of Air Pollutant” (GB16297-1996).
B. No dust leak:

C. Noise: Generated noise consists with “Light Industry Machinery Condition” (GB/T 14253-2008).

D.
4. Characteristics and Benefits
A. High efficiency. Separation of panel and funnel glass and collection of phosphor powder can be done in every 90 seconds.
B. Noise and exhaust gas consist with national environment protect standards.
C. Small floor space.
D. Low power consumption. The total power consumption is less than 10 kW.
E. Flexible work positions. All task can be accomplished by least 1 worker.
F. Adopted CRTs range includes various Dimension of CRTs from 14' to 33'
