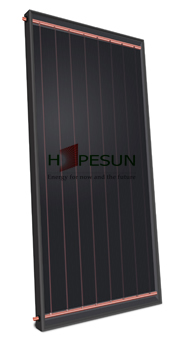

Flat Solar Collector
Flat Solar CollectorContinuous Selling Item
Flat Solar Collector
flat solar collector-black nickel chrome
STANDARD SPECIFICATION:
1.Absorber coating:Nickel bottom coating+ Selective black chrome surface.2.Optical Performance: Absorption: ~95% / Thermal Emission: ~10%3.Frame Casing:Anodized Aluminum alloy.4.Cover glass: Low iron tempered patterned glass.5.Insulation:25mm soft fiberglass layer + 25mm high- density fiberglass board.6.Back sheet: Embossed aluminum plate.7.Sealing profile: EPDM.8.Connection: Ø22/25mm9.Ext. Dimension: 2000 x 1060 x 68/75/82/95mm (L x W x H).10.Gross /Aperture area:2㎡/1.85㎡.11.Operation pressure: 650Kpa / 6.5bar.
Please read the specifications of solar collector carefully, for other question you want ask ,kind send mail to me .
1. More sizes and requirements can be discussed.
2. Noted that we are solar collectors, heating systems manufacturer and the price will be more reasonable, so are the quality and after sale service.
3. Your enquiry of our solar collectors are welcomed! Thanks.
STANDARD SPECIFICATION:
1.Absorber coating:Nickel bottom coating+ Selective black chrome surface.2.Optical Performance: Absorption: ~95% / Thermal Emission: ~10%3.Frame Casing:Anodized Aluminum alloy.4.Cover glass: Low iron tempered patterned glass.5.Insulation:25mm soft fiberglass layer + 25mm high- density fiberglass board.6.Back sheet: Embossed aluminum plate.7.Sealing profile: EPDM.8.Connection: Ø22/25mm9.Ext. Dimension: 2000 x 1060 x 68/75/82/95mm (L x W x H).10.Gross /Aperture area:2㎡/1.85㎡.11.Operation pressure: 650Kpa / 6.5bar.
Please read the specifications of solar collector carefully, for other question you want ask ,kind send mail to me .
1. More sizes and requirements can be discussed.
2. Noted that we are solar collectors, heating systems manufacturer and the price will be more reasonable, so are the quality and after sale service.
3. Your enquiry of our solar collectors are welcomed! Thanks.
- Place of Origin:
- China
- Brand:
- Hopesun
- Unit Price:
- USD 150
- Port:
- FOB Guangzhou
- Packing:
- sample:carton and wooden case container:carton
- Payment Terms:
- ;T/T
- Payment Remarks:
- 30%T/T balance before shipment
- Delivery Time:
- within 21
- Min Order Quantity:
- 10 pcs sample
- Standard / Certificates:
- ISO9001,TUV,solar keymark
