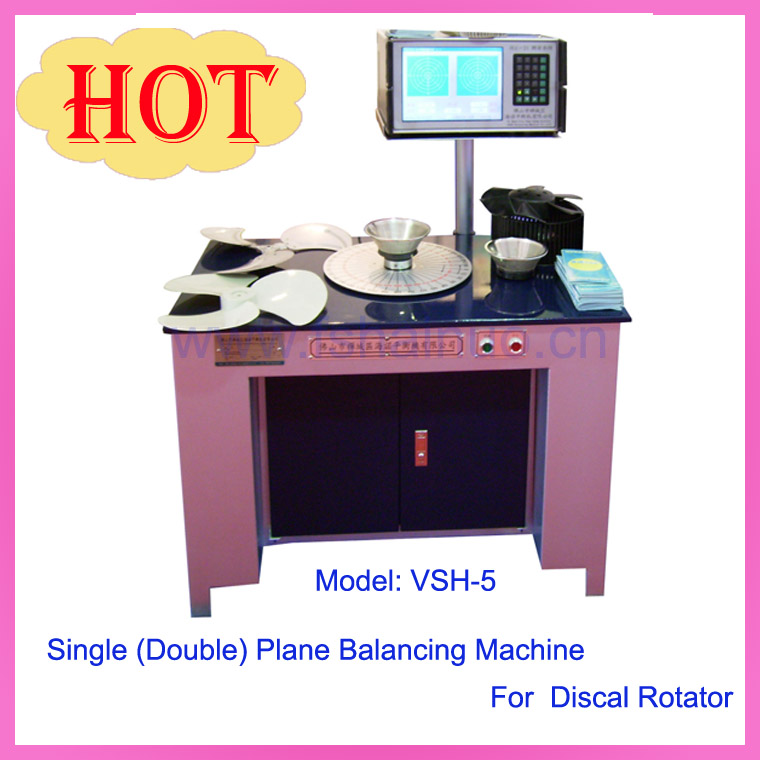

Vertical Single Plane Machine

According to the size of different types of workpieces, using the number keys enter the radius.The right value and phase of the unbalance will show in the measuring system when you start the engine. It also have the memory,parameter settings, fixture compensation, braking function.

This machine is widely used for balancing juicer,chuck, lutch, turbine discs, saw blade, diskbrake,flywheel,griding wheel,smoke exhaust vetilator,air-conditionings fan ect.

Vertical Machines,Single-plane:

Model designations:

Vertical(Single-plane/Two-plane)(Soft bearing/Hard bearing) -kg weight capacity

Example: VSS-5 = Vertical machine, Single-plane, Soft bearing, 0.5~5 Kg weight capacity

Model
Capacity
kg
Rotor Ø max
mm / inch
Single
Plane
Two Plane
Balancing

Speed

rpm
HP
Power supply

VSS-0.5
0.01~0.5
100
yes
no
300~8000
/
220V50Hz

VSH-5
0.5~5
600
yes
optional
900~1200
0.55
380V50Hz 3 Phase

VTH-5
0.5~5
600
yes
yes
900~1200
0.55
380V50Hz 3 Phase

VSH-30
3~30
700
yes
optional
700~1200
optional
380V50Hz 3 Phase


The more technical parameters are in the following.

Rotor data/Machine type
VSH-5

Display Mode
LCD

The way of supporting
Hard bearing

Minimun achieveable residual unbalance(MARU)(g.mm/kg)
≤5

Unbalance reduction ratio(URR)(%)
≥90
