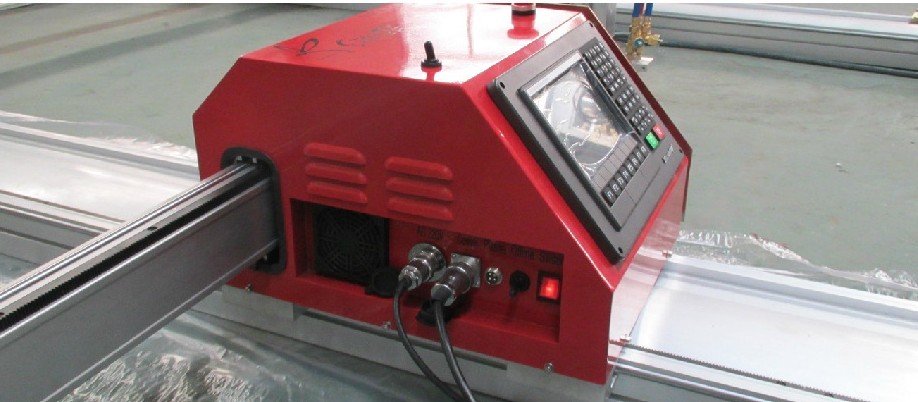

Cnc Plasma Cutting Machine

Portable CNC plasma cutting machine / CNC flame cutting machine is used for cutting metal plate, cut machine, such as steel plate. Faceful man-machine conversation.The beam can be easily disassembled, easy for packing and shipment. Sealing perfect, dust-proof.,light, smart and portable.
Cutting width:1200mm
Cutting length:2000mm

Discription:
1 The overall processing machine basegood stability, not deformed
2 Using beeline and double-slide lead rails, high accuracy
3 A detachable structural design for arm, convenient transportation and installation;
4 Beautiful structure, coordination, light weight;
5 Machine base is made in steel.
6 Using CNC of Beijng Start Microstep Control Technology CO., LTD: SH-2000UHA.
The CNC control system has the following character :
1) High reliability, such as anti-plasma jamming, and lightning strike, Surge;
2) 32M users program storage capacity can update to 64M
3) In both English and Chinese interface conversion;
4) During plasma processing, auto-complete the speed control of the corner;
5) Rich software features and practical flame / plasma cutting process;
6) In particular small line section procedure processing can be widely used in metal materials and advertisement, Iron;
7) Dynamic graphics, zoom in 1-8X the graphics, fixed point of automatic tracking;
8) Using USB Flash Drive reading procedure and timely upgrade software;
9) Built-in the rich graphics, makes programming easy to learn.

Effective cutting width: 0-1200mm
Effective cutting length: 0-2000mm
Effective cutting thickness: Flame cutting 6-150 mm
Plasma cutting 0.1-20mm (Up to the plasma power)

Parameter
Input voltage: 220V
Gas depression: Max0.1Mpa
Power frequency: 50HZ
Oxygen deprission:Max1.5Mpa
Rated power: 160W
Cutting type:plasma
Display:5.7inch
Total weight:80Kg

Automatic height controller SH-HC30
Automatic capacitance-height controller and automatic arc-height controller are the newest product of our company. The automatic capacitance-height controller is used for portable CNC flame cutting machine, the automatic arc-height controllor is used for portable CNC plasma cutting machine. This kind of automatic height controller can realize automatic function of going up and down between plate and torch.
