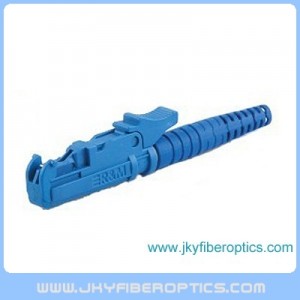

000/pc Sm Fiber Optic Connector
000/pc Sm Fiber Optic Connector, P/N:FOCN-E2000/PC-A-01-20-A-PItem Code / Model Number:
P/N:FOCN-E2000/PC-A-01-20-A-P
000/pc Sm Fiber Optic Connector
AVAILABILITY
-The connector can be supplied as a pre-assembled one-piece connector or as multi-pieces connector.
-Clips are available for SC and LC duplex connectors.
Housing kits without ferrule are available.
-PC and APC are available,Simplex and Duplex version are available.
FEATURES
Low insertion loss and back reflection loss
Ferrule end surface predomed
High precision alignment
Plastic body
Boots in a variety of colors
Free-floating ceramic ferrule
Bayonet style housing for easy termination
Zirconia Ceramic and PB ferrule for optional
SPECIFICATIONS
Single mode
Multimode
Insertion Loss
≤0.20dB
≤0.30dB
Return Loss
≥60 dB (PC) ≥65 dB(APC)
≥25 dB
Durability
<0.20 dB typical change, 1000 matings
Operating Temperature
-40 to + 85°C
-40 to + 85°C
-The connector can be supplied as a pre-assembled one-piece connector or as multi-pieces connector.
-Clips are available for SC and LC duplex connectors.
Housing kits without ferrule are available.
-PC and APC are available,Simplex and Duplex version are available.
FEATURES
Low insertion loss and back reflection loss
Ferrule end surface predomed
High precision alignment
Plastic body
Boots in a variety of colors
Free-floating ceramic ferrule
Bayonet style housing for easy termination
Zirconia Ceramic and PB ferrule for optional
SPECIFICATIONS
Single mode
Multimode
Insertion Loss
≤0.20dB
≤0.30dB
Return Loss
≥60 dB (PC) ≥65 dB(APC)
≥25 dB
Durability
<0.20 dB typical change, 1000 matings
Operating Temperature
-40 to + 85°C
-40 to + 85°C
- Place of Origin:
- China
- Brand:
- Jky
- Unit Price:
- USD 0.1
- Price Terms:
- FOB Shenzhen
- Packing:
- Ziplock packing or depends on you
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 3 days
- Min Order Quantity:
- 100
- Standard / Certificates:
- ROHS
- Keywords:
- e2000 fibre connector, fiber connector, e2000 fiber optic connector
