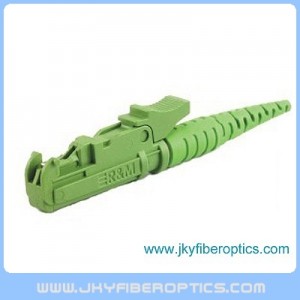

E2000/apc Sm Fiber Optic Connector

AVAILABILITY -The connector can be supplied as a pre-assembled one-piece connector or as multi-pieces connector. -Clips are available for SC and LC duplex connectors. Housing kits without ferrule are available. -PC and APC are available,Simplex and Duplex version are available. FEATURES Low insertion loss and back reflection loss Ferrule end surface predomed High precision alignment Plastic body Boots in a variety of colors Free-floating ceramic ferrule Bayonet style housing for easy termination Zirconia Ceramic and PB ferrule for optional SPECIFICATIONS Single mode Multimode Insertion Loss ≤0.20dB ≤0.30dB Return Loss ≥60 dB (PC) ≥65 dB(APC) ≥25 dB Durability 0.20 dB typical change, 1000 matings Operating Temperature -40 to + 85°C -40 to + 85°C P/N:FOCN-E2000/APC-A-01-20-G-P
