Solar Connector
Solar ConnectorItem Code / Model Number:
Solar Connector

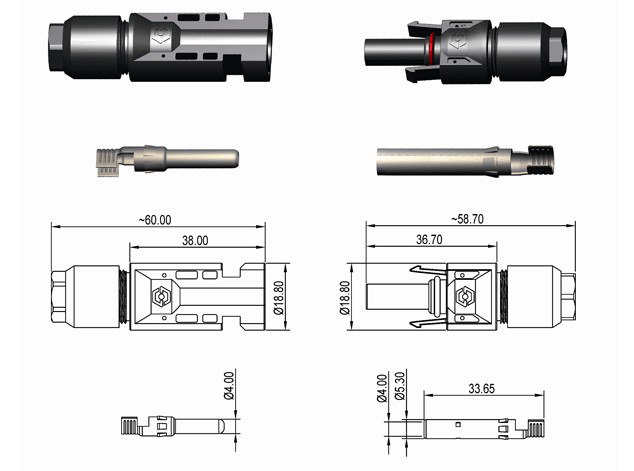

Detail information of TUV/solar connector
·Simple on-site processing
·Mating safety provided by keyed housings
·Mutiple plugging and unplugging cycles
·Accomodates PV cable with deferent insulation diamaters
·High current carrying capacity
solar connector Technical Data
Rated current : 20A (2-4mm²)
Degree of protection: IP2*/IP67
Retaed voltage: 1000V DC
Flame class : UL94-V0
Test voltage: 6000V(50Hz,1min)
Safety class: II
Overvoltage category:CATIII
Suitable class: OD4.5-7.0(2.5-4.0mm²)
Contact resistance of plug connectosr: 0.5mΩ
Insertion force/withdrawal force: ≤50N/≥50N
Contact material: Copper,Tin Plated
Connecting System: Crimp connection
Insulation material : PPO
Temperature range: -40~+90 degree
·Simple on-site processing
·Mating safety provided by keyed housings
·Mutiple plugging and unplugging cycles
·Accomodates PV cable with deferent insulation diamaters
·High current carrying capacity
solar connector Technical Data
Rated current : 20A (2-4mm²)
Degree of protection: IP2*/IP67
Retaed voltage: 1000V DC
Flame class : UL94-V0
Test voltage: 6000V(50Hz,1min)
Safety class: II
Overvoltage category:CATIII
Suitable class: OD4.5-7.0(2.5-4.0mm²)
Contact resistance of plug connectosr: 0.5mΩ
Insertion force/withdrawal force: ≤50N/≥50N
Contact material: Copper,Tin Plated
Connecting System: Crimp connection
Insulation material : PPO
Temperature range: -40~+90 degree
- Place of Origin:
- China
- Brand:
- Slocable
- Payment Terms:
- T/T
- Min Order Quantity:
- 200
- Keywords:
- cable connector, mc4, pv connector
