Samsung Cortex-a8 S5pc110 Development Kit

Kit-S5PC100 Highlights

• Samsung Cortex-A8 S5PC110 1GHz with 512KB L2 cache
• 512MB Mobile DDR 400Mega data rate
• 3.5-inch 480x320 capacitive touch screen display
• 1080p video playback via HDMI output
• WiFi, Bluetooth
• Accelerometer
• Geo Magnetic field sensor
• Debugging board
• Full hardware schematics
• u-boot 1.3.4, Kernel 2.6.29, Android Eclair 2.1
• Android 2.1 BSP in source code

Kit-S5PC110 Description

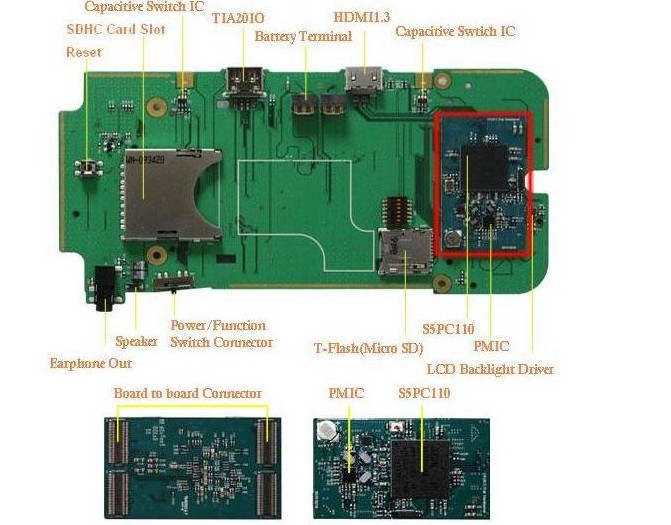

KIT-S5PC110 Evaluation Board is a compact board using S5PC110 microprocessor. It takes full features of this processor and supports 512MB Mobile DDR 400Mega data rate memory. The board has exposed many other hardware interfaces including RS232 serial port, LCD/TSP, HDMI, SD/MMC, TF-card interface, keyboard, WiFi, The board boot the system from SD card. It is able to support Android OS and provided the sourece code for the Linux2.6.29 BSP and Android 2.1-R3.
KIT-S5PC110 Evaluation Kit includes the KIT-S5PC110 evaluation board, CPU Board and all necessary accessories to help users start their design of multimedia applications. The board is preloaded with Android OS in SD card. User can display the subsystem using a 3.5" TFT LCD and Touch screen. Along with the kit, Boardcon provides user manual, schematic drawing, Debugging board and datasheet documents to help customers better understand and use the kit.
