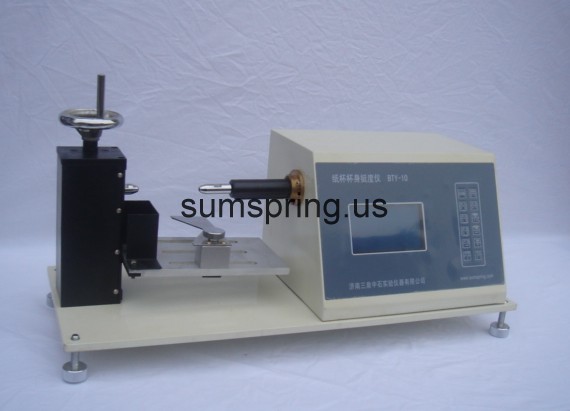

Paper Cup Stiffness Tester

Paper-cup Stiffness Tester BTY-10

Application of Paper-cup Stiffness Tester: Paper-cup Stiffness Tester is used for testing stiffness of kinds of cups, is the ideal testing instrument. It is the necessary testing instrument for paper-cup manufacturer, relative scientific research and quality inspection department.

Features of Paper-cup Stiffness Tester:
1. Full-automatic electrical testing instrument, easy to use, wider testing range,
2. Large LCD display, mini-computer control system,
3. Mini-printer, could print testing data at any time

Technical parameter of Paper-cup Stiffness Tester:
1. Testing range: (1~10)N, resolution:0.01N,
2. Measurable caliber cups: 50~160(mm),
3. Value accuracy: value error 0.1%,
4. Value resolution: 0.01N,
5. Speed: (12.5±1.02)mm/min,
6. Probe relative moving distance: (9.5±0.2)mm,
7. Distance of two probes: (40~120)mm,
8. Dimension: 500x270x340(mm),
9. Net Weight: 25kg.

Testing Conditions of Paper-cup Stiffness Tester: Before testing, the paper cups shall be placed under the temperature (23 ± 1) ºC, relative humidity (250± 2) ºC R.H. for at least 24 hours; the test shall be also conducted under such conditions, which complies with the provisions of Standards GB/T 10739.

Configuration: Mainframe, Mini-printer, Power Line

Specifications of main component for Paper-cup Stiffness Tester: Mainframe, Mini-printer

Recommend reasons of Paper-cup Stiffness Tester:
1. International advanced technology, top quality main elements, guarantee the stability of the instrument,
2. Human-machine friendly design, easy operation,
3. Reasonable price

Keywords of Paper-cup Stiffness Tester:
1. Standard: JJG157-1995
2. Others: Paper glass stiffness tester, paper glass stiffness test, paper stiffness tester
