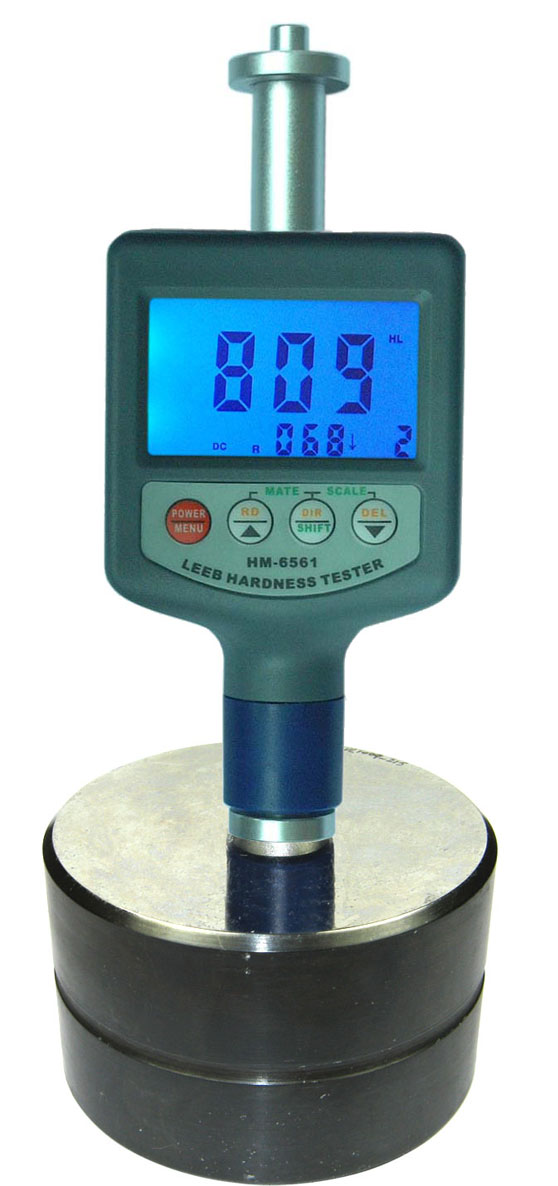

Leeb Hardness Tester Hm-6561

Leeb Hardness Tester Hm-6561, HM-6561
Item Code / Model Number:

Leeb Hardness Tester Hm-6561 Leeb Hardness Tester Hm-6561
1.1 Typical Applications
* Die cavity of molds
* Inspection of bearing and other mass produced parts on a
production line
* Failure analysis of pressure vessel, steam generator and
other equipment
* Inspection of installed machinery, permanent parts of
assembled systems and heavy work pieces.
* Testing surface of a small hollow space
* Material identification in the warehouse of metallic materials
* Rapid testing in large range and multi-measuring areas for
large-scale work piece
1.2 Testing Features
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
* Large memory could store 250 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.
1.3 Technical Specifications
Display: 12.5mm LCD with back light
Accuracy: Display error ±0.8% at LD=900
Measuring range: 200-900L
Conversion: HL-HRC-HRB-HB-HV-HSD
Materials: 9 different common materials
With RS232C interface
Memory: 250 data can be stored and re-readable
Impact device: D Will handle the majority of hardness testing
applications. Weight: 75g
Power supply: 2x1.5V AAA size battery
Dimension: 146×65×36mm
Weight: 130g (not including batteries)
Working temperature: -10℃~+50℃
Storage temperature:-30℃~+60℃;
Relative humidity: ≤90%
Optional Accessories:
1 RS232C or USB cable +Software ,Optional Configuration
2 Other type of impact devices and support
rings Refer to Table A in the append
  • Place of Origin:
  • China
  • Brand:
  • Landtek
  • Packing:
  • carton
  • Payment Terms:
  • T/T
  • Payment Remarks:
  • Western Union
  • Delivery Time:
  • 3~5 days
  • Min Order Quantity:
  • 10 pcs
  • Standard / Certificates:
  • Keywords:
  • sclerometer, hardness meter, leeb hardness gauge
