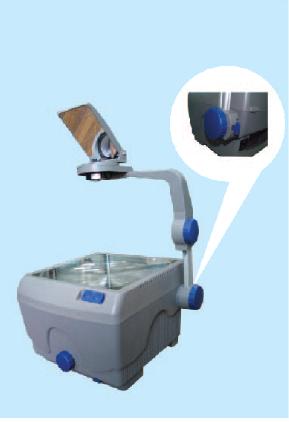

Projector (ht401 Series)

Place of Origin China
Brand Name CINON
Certification UL, TUV, CE, GS

1) Plastic Body, Nesest style 2) Foldaway post and head 3) Anti-glare fresnel lens(optional) 4) Circled color fringe adjustment 5) External fast lamp-changer with ball stop mechanism 6) Excellent Lamp House Based on a durable die-cast Aluminum

1) Item/model: HT 201E, HT 201, HT 301, HT 401
2) Aperture: 285mm x 285mm (11-1/4 x 11-1/4)
3) Lens:
A) HT 201E, HT 201: 1-element
B) HT 301, HT 401: 3-element
4) Focal length:
A) HT 201E, HT 201: F=280mm
B) HT 301, HT 401: F=315mm
5) Tilting angle: 0-55 degrees
6) Head rotation: 360 degrees
7) Rower: AC 110V, 220V, 230V, 240V50/60Hz available
8) Power cord: 3m standard detachable power cable, special length upon request
9) Lamp:
A) HT 201E, HT 201, HT 301: EHJ 24V 250W
B) HT 401: EVD 36V 400W
10) Lamp changer:
A) HT 201E: No
B) HT 201: Yes
C) HT 301: Yes
D) HT 401: Yes
11) Condenser lens:
A) HT 201E, HT 201: NO
B) HT 301, HT 401: Yes
12) Color fringe adjustment: Yes
13) Rightness switch: No
14) Lumen output:
A) HT 201E: 2000+
B) HT 201: 2000+
C) HT 301: 2300+
D) HT 401: 4000+
15) Cooling: Forced air-cooled
16) Safety thermal cut out switch: Yes
17) Net weight:
A) HT 201E: 8.5kg
B) HT 201: 8.7kg
C) HT 301: 8.9kg
D) HT 401: 9.7kg
18) Overall size (WxDxH)(folded): 400x400x720(263)mm
19) Packing size: 550x450x370mm
20) 312PCS/20' FCL
HP/R Series Overhead Projector:
1) Item/model: HP/R 201, HP/R 301, HP/R 401, HP/R 401+
2) Aperture: 285mmx285mm
3) Folding: Foldaway arm and head
4) Objective lens:
A) HP/4 201: 1-element f=290
B) HP/R 301, HP/R 401: 3-element f=310
C) HP/R 401+: 1-element f=290
5) Lamp/life: 24V 250W/50h, EVD 36V 400W/50h
6) Dual sockets/Dual lamps
7) Illumination (central lumen):
A) HP/R 201: 3000+
B) HP/R 301: 2800+
C) HP/R 401: 4200+
D) HP/R 401+: 4200+
8) Tilting angle: 0-60 degrees
9) Head rotation: 360 degrees
10) Lamp changer: Yes
11) Condenser lens:
A) HP/R 201: No
B) HP/R 301, HP/R 401: Yes
C) HP/R401+: No
12) Safety cut switch: Yes
13) Overheat thermostat: Yes
14) Brightness switch: Yes
15) Cooling system: Forced air-cooled (Drum cooling fan)
16) Power supply: AC 110V, 220/230V, 230/240V, 50/60Hz available
17) Power cord: 3m standard detachable power cable, special length upon request
18) Net weight:
A) HP/R 201: 11.2kg
B) HP/R 301: 10.5kg
C) HP/R 401: 11.2kg
D) HP/R 401+: 11kg
19) Dimensions: 300x310x230mm
20) Packing size: 440x410x290mm
