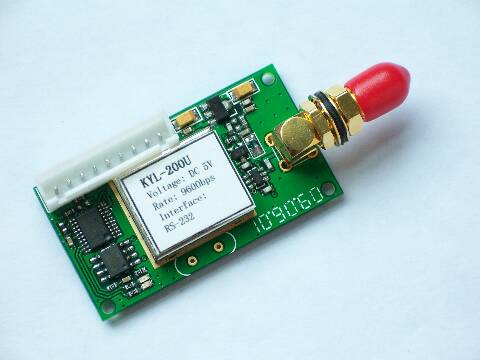

Rf Module 433mhz 10mw-100mw Rs232/rs485/ttl/usb Interface
Rf Module 433mhz 10mw-100mw Rs232/rs485/ttl/usb Interface, KYL-200UItem Code / Model Number:
KYL-200U
Rf Module 433mhz 10mw-100mw Rs232/rs485/ttl/usb Interface
Data Sheet:
Power output: 5V DC (customize)
RF power: ≤10mW (customized 10 to 100mW)
RF effective rate: 1,200/2,400/4,800/9,600/19,200bps
Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps optional
Frequency band: 433, 450, 470, 868, 915 or ISM others
Interface: standard RS-232/RS-485/TTL
Communication mode: half-duplex
Offering a transparent data interface, it is suitable for any standard or non-standard user protocols
Channel: 8(default), 16/32(customized)
Receive current: <20mA(TTL connect)
Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)
Transmitting current: <40mA
Sleep current: <20uA
RF line-of-sight range: 600m (BER=10-5@9600bps)
1,000m (BER=10-5 @ 1,200bps)
Size: 47 x 26 x 10mm (without antenna port)
Power output: 5V DC (customize)
RF power: ≤10mW (customized 10 to 100mW)
RF effective rate: 1,200/2,400/4,800/9,600/19,200bps
Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps optional
Frequency band: 433, 450, 470, 868, 915 or ISM others
Interface: standard RS-232/RS-485/TTL
Communication mode: half-duplex
Offering a transparent data interface, it is suitable for any standard or non-standard user protocols
Channel: 8(default), 16/32(customized)
Receive current: <20mA(TTL connect)
Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)
Transmitting current: <40mA
Sleep current: <20uA
RF line-of-sight range: 600m (BER=10-5@9600bps)
1,000m (BER=10-5 @ 1,200bps)
Size: 47 x 26 x 10mm (without antenna port)
- Place of Origin:
- China
- Brand:
- Kyl
- Unit Price:
- USD 25
- Price Terms:
- FOB Shenzhen
- Payment Terms:
- T/T
- Delivery Time:
- 1 days
- Min Order Quantity:
- 2pcs
- Keywords:
- rf module, wireless transmitter, wireless receiver
