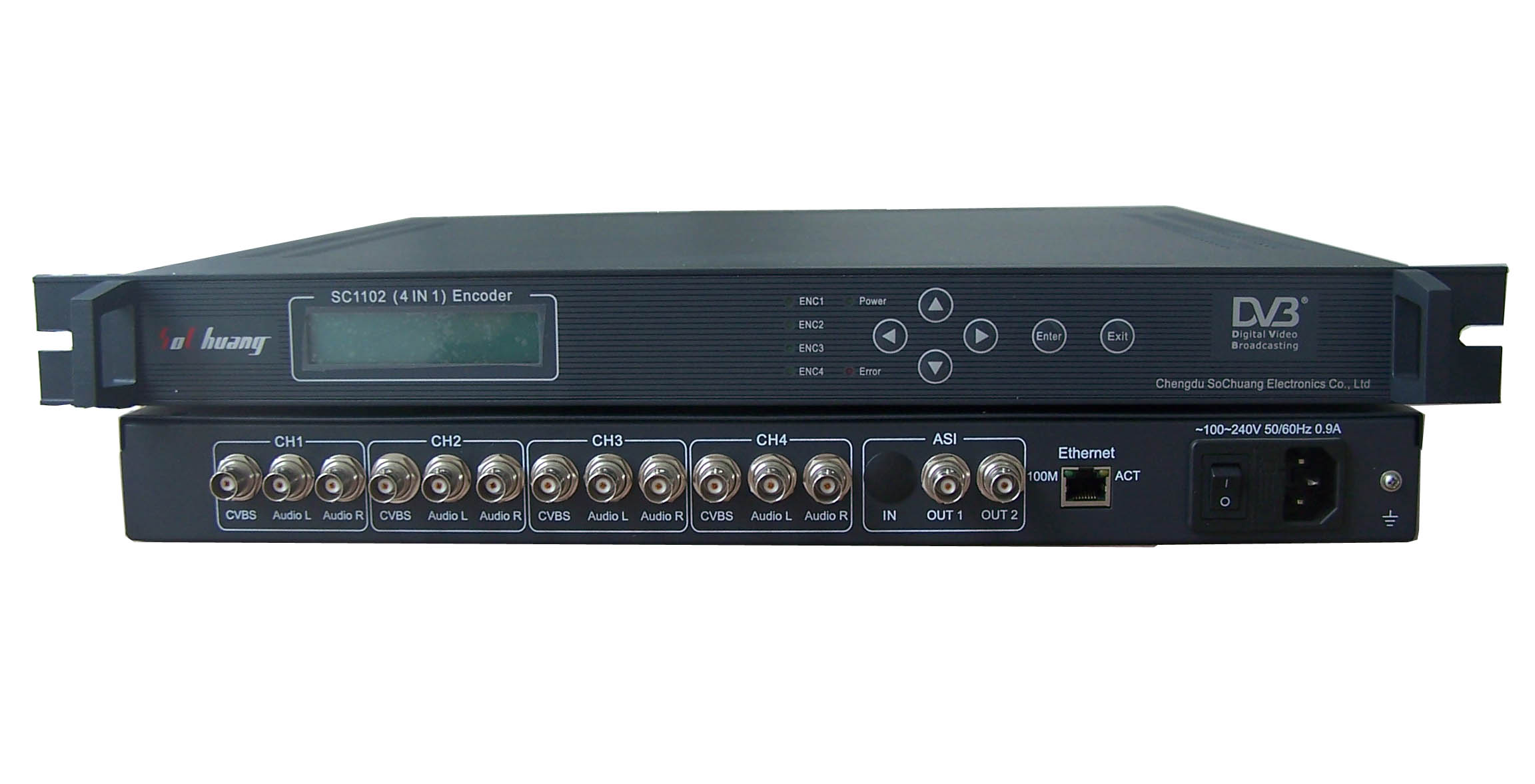

4in1 Mpeg-2 Encoder

SC-1102 4in1 Encoder is an easy to use, powerful MPEG-2 encoder. Supports analog composite video and mono or analog stereo, etc.; Compressed data output format is ASI, compression manner is MPEG-2MP @ ML. Encoder make real-time encoding and multiplexing (at most four) and generate one MPTS multi-program transmission path flow. It is in full compliance with MPEG-2 standard, with a strong compatibility. Its volume is IU computer case. It can completely off-line set and run by the front panel LCD display.
Features:
. Make encoding and re-create to 4-channel audio and video signal and generate one MPTS stream.
. Support MPEG-2 MP @ ML (4:2:0) coding; .High-fidelity audio processing R / L channel, stereo input; . Output bit rate continuously adjustable, flexible and easy to use; . Rich input-output interface to achieve freedom of access; . Local and remote control of network management; . LCD display, easy and flexible operation; . High reliability design, stable operation; .Bit Stream multiplexing function; . PID display and settings; . SDT, program name, and provider settings.


Technical Specification:
Input interface Video signal LEV 1.0Vp-p
S-Video LEV 0.28Vp-p
IP data injection RJ45
Output interface Audio signal LEV 2Vp-p
ASI DVB standard
Output bit rate 1.0~15Mbps Continuously adjustable
Video Coding Compliance with ISO 11172(MPEG-1) &ISO 13818(MPEG-2)
MPEG-2 coding adopt MP@ML (4:2:0)
MPEG-2 Adaptive Field Frame (AFF)
MPEG-2 field based (FB)
audio coding sampling frequency 32KHz,44.1KHz,48KHz
code rate 64,128,192,256,384Kbps
property MPEG-1 1/2 layer,CD quality support stereo or dual-channel
Resolution Standard Compliance with CCIR601 standard,support 1/2D1,2/3D1,3/4D1
PAL 720576,704576,640576,544576,480576,384576,352576
NTSC 720480,704480,640480,544480,480480,384480,352480
General Features Size 44mm482mm390mm
Environment 0 ~ 45(Operating);-20 ~ 80(Storage)
Power 220VAC±10%,50Hz,25W
