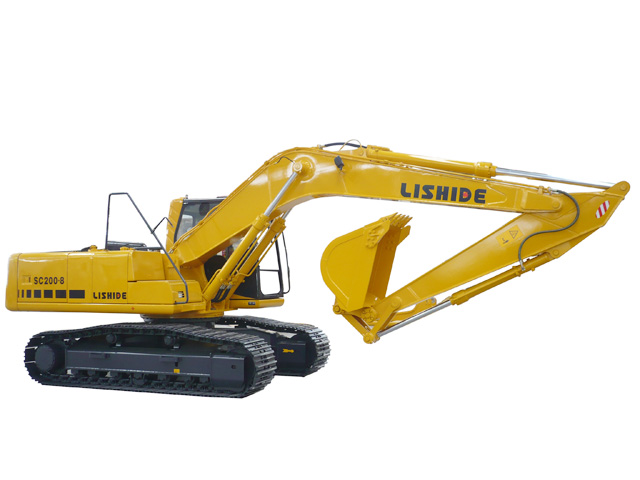

20ton Excavator Sc200.8

Item Unit Reference value
Engine (genuine and imported)
Model 6BT5.9-C
Type 4-stroke, water cooling, inline, in-head valve, direct injection, turbo charged
Cylinder no. cylinder bore × stroke mm 6-102×120
Piston displacement L 5.9
Rated output power Kw/rpm 108/2100
Max. torque N.M/rpm 597/1600
Start motor Kw 24V,4.5
Alternator A 24V,4.5
Battery v,Ah 12,120×2
Carrying wheel (A) 2
Standard working device
Standard boom SC210.7/SC210LC.7
Bucket capacity m3 Scope 0.4-0.8
Rock bucket (option) m3 0.6
Dredging bucket (option) m3 0.8
Grading bucket (option) m 2
Arm (standard device) SC210.7/SC210LC.7
Travel part
No. of supporting wheel on each side (A) 7
No. of standard track board on each side 45
Track gauge mm 2180
Track grounding length mm 3260
Hydraulic system / control valve (Kawasaki)
Type KMX15R
Control method Hydraulic pilot type
Travel motor (KYB) Axial piston type (with brake valve and parking brake)×2
Slewing motor (Kawasaki) Axial piston type (with brake valve and parking brake) ×1
Hydraulic system / hydraulic pump (Kawasaki)
Type × no. l/min Variable displacement pump
Flow L/min Piston type:214×2
Set pressure (Mpa)(Kg/cm2) Piston type:34.8(355)
Hydraulic system / hydraulic cylinder (Reciprocating piston type)
Boom cylinder 120×85
Arm cylinder 135×95
Bucket cylinder 115×80
V Min. slewing radius of working device(mm) 3040
Z Top height for min. slewing radius of working device (mm) 8005
Bucket capacity(m3) 0.8
Operation weight(kg) 20600
O Max. Digging height(mm) 9223
P Max. dumping height(mm) 6506
Q Max. digging depth(mm) 6620
R Max. vertical digging depth(mm) 5980
T Max. digging radius(mm) 9875
U Max. ground digging radius(mm) 9700
Max. bucket digging force(kN) 112(11400)
Slewing speed(rpm) 11.7
Travel speed(km/h) L：3.1 H：5.5
Gradeability 35
Grounding pressure(kPa) 44.9
Standard track board width(mm) 600
Max angle of slewing on slope(deg) 25
A Overall length (in transportation)(mm) 9423
B Overall width(mm) 2780
C Overall height (in transportation)(mm) 3165
D Body overall height ( cab top)(mm) 2940
E Clearance of super structure(mm) 1064
F Min clearance(mm) 468
G Rear slewing radius(mm) 2720
H Track grounding length(mm) 3260
J Track length(mm) 4070
K Track gauge(mm) 2180
L Track width(mm) 2780
M Track board width(mm) 600
V Min. slewing radius of working device(mm) 3040
Z Top height for min. slewing radius of working device (mm) 8005
Bucket capacity(m3) 0.8
Operation weight(kg) 20600
operation scope
Bucket capacity(m3) 0.8
Operation weight(kg) 20600
