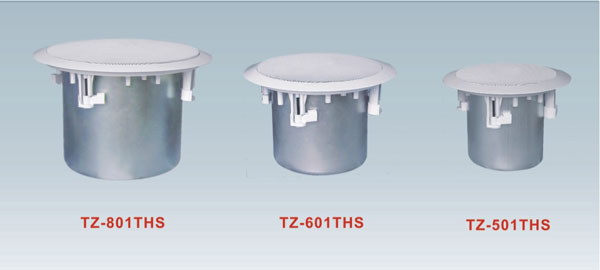

Tz-801tsh Tz-601tsh Tz-501ths
Tz-801tsh Tz-601tsh Tz-501thsItem Code / Model Number:
Tz-801tsh Tz-601tsh Tz-501ths
.Step 1-Cutout the hole size,either by tracing the cardboard cutout template or with a circular cutter set to the cutou size. Pull the wiring through cutout hole.
.Step 2-Dismantle speaker's grille.
.Step 3-Insert the speaker into the ceiling and tighten it.Insert the speaker into the ceiling as far as it goes,until the front baffle rim touches the ceiling,
Turn the attachment screws CLOCKWISE to tighten the mounting tabs .the first 3/4 clockwise turn rotates the attachment tabs outward and the remaining turns tighten the speaker DO NOT OVER TIGHTEN.
TZ-801THS
power taps:5/10/20/40W/8Ω
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:50-20kHz
Dimensions(mm):Φ270x185
Hole for mounting:Φ240
Material(panel):ABS
Material(cover):IRON
Weight(kg):3.1
Speaker units:8"
TZ-601THS
power taps:3.8/7.5/15/30W/8Ω
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:90-20kHz
Dimensions(mm):Φ230x150
Hole for mounting:Φ200
Material(panel):ABS
Material(cover):IRON
Weight(kg):2.3
Speaker units:6"
TZ-501THS
power taps:2.5/5/10/20W/8Ω
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:100-20kHz
Dimensions(mm):Φ203x145
Hole for mounting:Φ170
Material(panel):ABS
Material(cover):IRON
Weight(kg):1.8
Speaker units:5"
.Step 2-Dismantle speaker's grille.
.Step 3-Insert the speaker into the ceiling and tighten it.Insert the speaker into the ceiling as far as it goes,until the front baffle rim touches the ceiling,
Turn the attachment screws CLOCKWISE to tighten the mounting tabs .the first 3/4 clockwise turn rotates the attachment tabs outward and the remaining turns tighten the speaker DO NOT OVER TIGHTEN.
TZ-801THS
power taps:5/10/20/40W/8Ω
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:50-20kHz
Dimensions(mm):Φ270x185
Hole for mounting:Φ240
Material(panel):ABS
Material(cover):IRON
Weight(kg):3.1
Speaker units:8"
TZ-601THS
power taps:3.8/7.5/15/30W/8Ω
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:90-20kHz
Dimensions(mm):Φ230x150
Hole for mounting:Φ200
Material(panel):ABS
Material(cover):IRON
Weight(kg):2.3
Speaker units:6"
TZ-501THS
power taps:2.5/5/10/20W/8Ω
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:100-20kHz
Dimensions(mm):Φ203x145
Hole for mounting:Φ170
Material(panel):ABS
Material(cover):IRON
Weight(kg):1.8
Speaker units:5"
