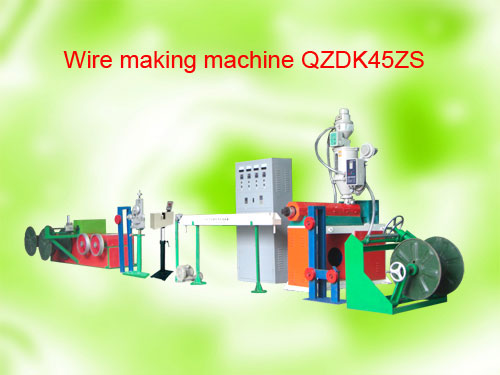

Wire Making Machine Qzdk45zs

A.Wire making machine QZDK45ZS Usefulness:
This machine is used to insulate wire through hot extrusion like polyethylene and PVC.
B.Wire making machine QZDK45ZS Technical Parameter
1.Bare wire diameter:0.5-4.5 mm
2.Coil in speed:6-60 m/min
3.Screw diameter:45 mm
4.L/D ratio:25:1
5.Pressure ratio:1:3
6.Motor power:5.5kw（frequency motor）
7.Heating power:7kw
8.Hauling power:1.5kw（variable frequency motor）
9.Reel diameter:400-630mm
10.Wire measuring range:0.1-30mm
11.Auto-feeding apparatus:900w（300kg/h）
12.Plastic drying apparatus:4.75kw（volume 25kg）
C.Wire making machine QZDK45ZS Configuration
1.Non-axle pay-off frame:WF630
2.Level coil in apparatus
3.Extruder SJ45（5.5kw frequency motor.4 section heating control,auto-feeding apparatus,plastic drying apparatus）
4.Heating control cupboard（4 section）
5.2m Cooling channel:TWO
6.Level frame
7.Drying machine CG30
8.Printer (YZ)
9.Measuring diameter instrument
10.Double wheel hauling and reeling machine (SS400/630):1.5kw frequency motor
11.Machine-head、wire-mold working over besides.
