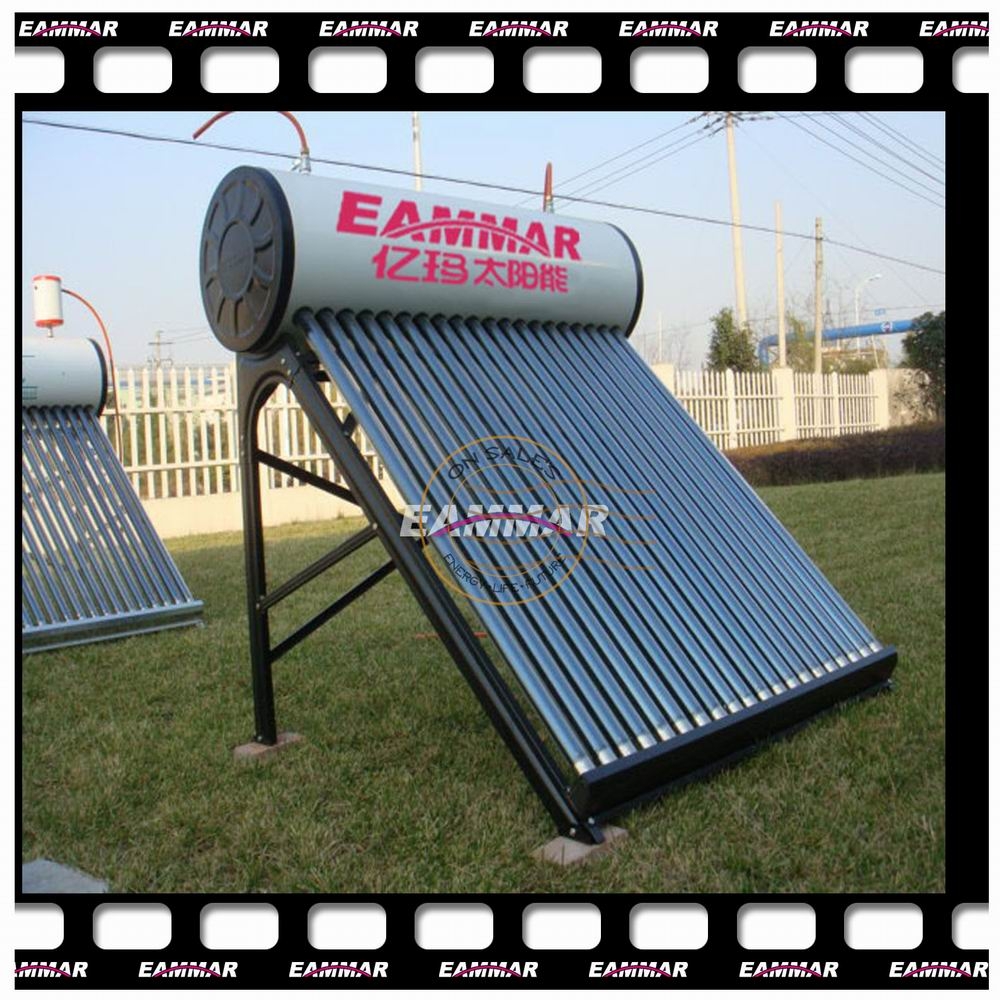

Direct-heated Solar Water Heater
Direct-heated Solar Water Heater, EM-R01/EM-R02Item Code / Model Number:
EM-R01/EM-R02
Direct-heated Solar Water Heater
Specifications
Turkish special model.Compact solar water heater with big water auto-feeding tank,big capacities are available.
WORKING PRINCIPLE
Solar vacuum tube was evacuated into the tank,the coating inside of tube can absorb more than 92% heat energy from sunshine.The cold water in water tank flows into the tube and become hot,because of different density between cold and hot water,there will be a natural circulation in the tube,hot water will float back to tank.50mm thickness heat insulation layer by polyurethane between inner tank and outer tank can keep the temperature of hot water for about 2 days without any sunshine,consumer can enjoy comfortable bathe anytime.
SPECIFICATION
1). inner tank: stainless steel SUS304/2B
2). outer tank: galvanized / colour steel (milk white)
3). frame: galvanized steel
4). insulation: polyurethane frothing
5). vacuum tube: Al/N coating,47X1500 / 58X1800mm
6). accessories: water auto-feeding tank,electrical heater
7). logo: OEM, colour printing/sticker
8). capacity: 150/180/200/240/300/360L
Turkish special model.Compact solar water heater with big water auto-feeding tank,big capacities are available.
WORKING PRINCIPLE
Solar vacuum tube was evacuated into the tank,the coating inside of tube can absorb more than 92% heat energy from sunshine.The cold water in water tank flows into the tube and become hot,because of different density between cold and hot water,there will be a natural circulation in the tube,hot water will float back to tank.50mm thickness heat insulation layer by polyurethane between inner tank and outer tank can keep the temperature of hot water for about 2 days without any sunshine,consumer can enjoy comfortable bathe anytime.
SPECIFICATION
1). inner tank: stainless steel SUS304/2B
2). outer tank: galvanized / colour steel (milk white)
3). frame: galvanized steel
4). insulation: polyurethane frothing
5). vacuum tube: Al/N coating,47X1500 / 58X1800mm
6). accessories: water auto-feeding tank,electrical heater
7). logo: OEM, colour printing/sticker
8). capacity: 150/180/200/240/300/360L
- Place of Origin:
- China
- Brand:
- Eammar
- Unit Price:
- USD 112~239
- Price Terms:
- FOB Shanhai
- Packing:
- CARTON
- Payment Terms:
- L/C;T/T
- Delivery Time:
- WITH IN 15 days
- Min Order Quantity:
- 1set
- Standard / Certificates:
- CE, SGS, ISO, CCC
- Keywords:
- solar, water heater, solar energy
