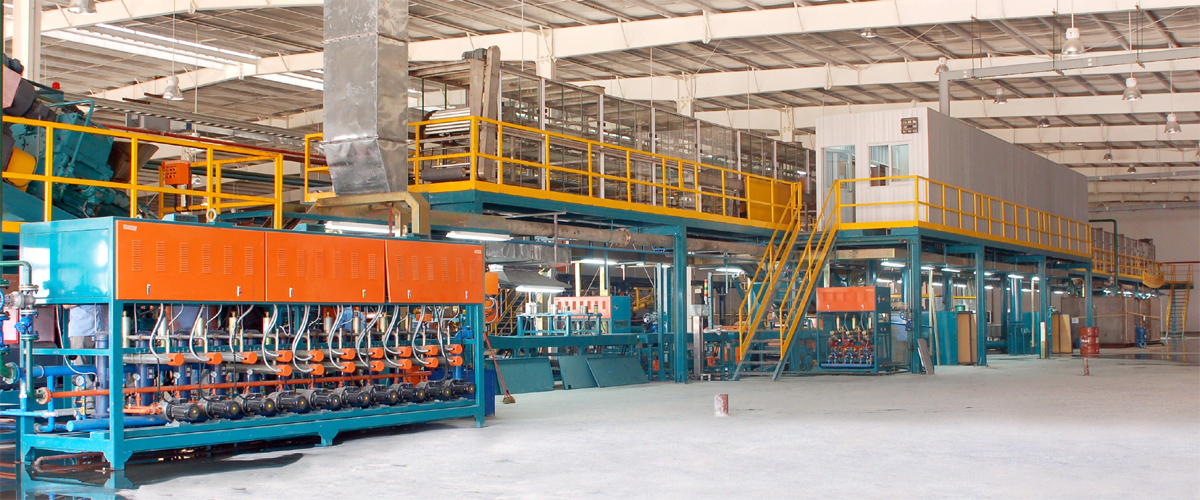

Tread & Sidewall Extruding Train Line
Tread & Sidewall Extruding Train LineItem Code / Model Number:
Applications: used for take-off components from the duplex extruder, compulsory contraction, breaker strip sticking or transition strip sticking, cooling, fixed-length cutting, weighing, pick-up and wind-up processes.
Main Specifications:
Width of conveyer belt or roller: 600~1000mm
Linear speed of train: 3~45m/min
Tread centering device: ±1.0mm
Cooling method: spraying + immersion
Cutting precision: ±3mm
Tread cutting speed: max20刀/min
Temperature of cooling: ≤room temperature +5℃(when the temperature of cooling water≤25±5℃)
Dimension: (L×W×H) 75000×5000×6000
Main Specifications:
Width of conveyer belt or roller: 600~1000mm
Linear speed of train: 3~45m/min
Tread centering device: ±1.0mm
Cooling method: spraying + immersion
Cutting precision: ±3mm
Tread cutting speed: max20刀/min
Temperature of cooling: ≤room temperature +5℃(when the temperature of cooling water≤25±5℃)
Dimension: (L×W×H) 75000×5000×6000
