Yinghe Industrial Ltd

Desktop Cutting Plotter

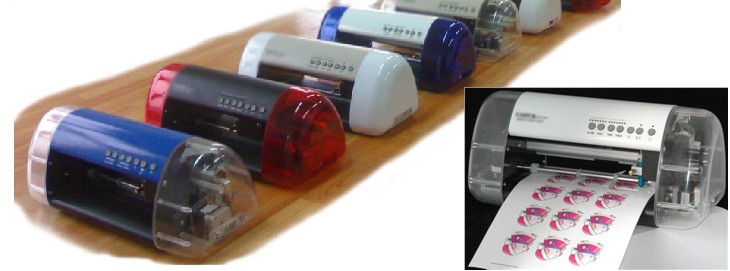

Desktop Cutting Plotter, YINGHE 330
Item Code / Model Number:
YINGHE 330

Desktop Cutting Plotter Desktop Cutting Plotter
YINGHE 240/330 is a small cutting and drawing plotter with a registration mark Laser on it.
You can draw, cut, kiss-cut and decupe shapes around. You can cut carton or other Vinyl and polyester sheets for your business and hobbies.
It is powered by a 16V DC adaptor.

Specifications
Item YINGHE 240 YINGHE 330
Configuration Grit-rolling
Drive system Stepping moter
Maximum cutting range 190mm x 2000 mm 290 mm x 2000 mm
Effective sheet width A4 size supported A3 size supported
Cutting force 60gf to 350gf (7 levels selectable)
Cutting speed 10 - 280 mm/s ( 7 levels selectable)
No. of pens mountable 1
Media types Film media 0.1 mm or less in thickness
Kent paper (inkjet or laser paper up to 300g/m2)
Drawing paper,Postcards, Scrapbooking paper; Inkjet photo paper
Card paper can be : 400g
(Not all types of media can be cut)
Interface USB1.0 or RS232
Power supply Dedicated adapter, 16V DC (2.5A)
Working environment 5 to 30 °C, 35 to 80% R.H. (Non-condensing)
External dimensions (W x D x H) Approx380 x 170 x 165 mm Approx470 x 170 x 165 mm
Carton dimensions Approx450 x 260 x 260mm Approx560 x 260 x 260mm
Weight Approx. 4.5kg Approx. 5.5 kg
Gross weight Approx. 5.0kg Approx. 6.0kg
Knife All common knife
Accessory for computer Driver (corel drew can output directly)
USB port Have


Accept Software : FlexiSIGN-PRO, SignCut X2 , WinPCSIGN, EuroCut ,Artcut ,
CorelDRAW 12 ,Adobe Illustrator CS2, AOTO CAD
  • Place of Origin:
  • China
  • Brand:
  • YINGHE
  • Packing:
  • External dimensions (W x D x H) Approx380 x 170 x 165 mm Approx. 4.5kg Approx470 x 170 x 165 mm Approx. 5.5 kg
  • Payment Terms:
  • T/T;Cash
  • Delivery Time:
  • 3 days
  • Min Order Quantity:
  • 1 pc
  • Standard / Certificates:
  • CE
  • Keywords:
  • desktop vinyl cutting machine, desktop vinyl cutter, desktop vinyl cutting plotter

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • China
  • Employee Count:
  • 112
  • Established Year:
  • 1993
  • Brands:
  • Yinghe
  • OEM:
  • YES
  • ODM:
  • YES
  • R&D Department:
  • YES
  • Factory Location:
  • Guangzhou, Guangdong, China
  • Type of Machinery:
  • Advertisement Machine
  • Production Leadtime:
  • 5-7 days
  • Certificates:
  • CE
  • Strengths:
    1. CE certification
    2. high quality
    3. best after-sell-service
    4. one-stop service(machine,consumable,spare parts)
    5. low price

Contact Information

  • Company Name:
  • Yinghe Industrial Ltd
  • Country:
  • China
  • Address:
  • 3rd floor,building A8,3rd Industrial Park,Yinglong Road,longdong,tianhe district,Guangzhou,Guangdong,China
  • Website:
  • http://www.yh114.cn
