Cutting Plotter

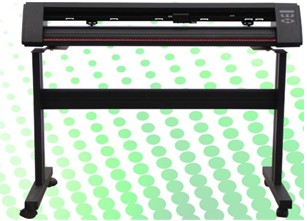

Cutting Plotter, YH-TC1261
Item Code / Model Number:
YH-TC1261

Cutting Plotter Cutting Plotter
Highlight Features:with opos
1. USB 2.0 interface, support hot-swappable, and is equipped with serial port to support the long-distance data transmission.
2. 64Mb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even blackout.
3.New high-speed PIC remote control system, higher speed, lower noise.
4.Digital force & speed adjustable, direct and steady.
5.Humane design, allows to adjust cutting force and speed while working.
6.High-precision "steel barbed" axis, higher accuracy.
7.Auto. memory of blade force & Speed, adjustable at any time, easy to use.
8.Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.
9.Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.
10.Unique red cutting slot make it easier to operate.

PARAMETERS MODEL.
Model YH-TC631 YH-TC801 YH-TC1061 YH-TC1261
Drive Motor Sepecial Motor Control
Media Size 710mm/2.33ft 880mm/2.89ft 1120mm/3.67ft 1340mm/4.40ft
Cutting Size 630mm/2.07ft 800mm/2.62ft 1040mm/3.41ft 1260mm/4.13ft
Max.Speed 600mm/s
Cutting Force 10~400g
LCD With
Buffer capacity 64Mb
Resolution 0.025mm/step(0.001in./step)
Repeatability 0.1mm/0.0039in.
Commands Set HPGL or DMPL
Interfaces Serial & USB
Positioning Mode Origin Setup at random available
Copy Function Up to 99 copies
Power <100W
Power AC220V/110V,50Hz~60Hz
requirementst
Windows Driver Direct Output from CorelDraw
Packing Size (WXDXH) 1.04X0.36X0.4m 1.19X0.36X0.4m (3.90X1.18X1.31 ft) 1.43X0.36X0.4m (4.69X1.18X1.31 ft) 1.64X0.36X0.4m (5.38X1.18X1.31 ft)
(3.41X1.18X1.31 ft)
G./Weight 20KG/45lbs 25KG/55lbs 32KG/70.4lbs 39.0KG/86lbs
Environment Temperature:0℃~35℃, 5%-95%(Non-condensing)
  • Place of Origin:
  • China
  • Brand:
  • Yinghe
  • Packing:
  • Packing Size (WXDXH)1.04X0.36X0.4m 1.19X0.36X0.4m 1.43X0.36X0.4m 1.64X0.36X0.4m G./Weight 20KG/45lbs 25KG/55lbs 32KG/70.4lbs 39.0KG/86lbs
  • Payment Terms:
  • T/T;Cash
  • Delivery Time:
  • 5 days
  • Min Order Quantity:
  • 1 set
  • Standard / Certificates:
  • CE
  • Keywords:
  • vinyl cutter, vinyl cutting plotter, vinyl cutting machine

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • China
  • Employee Count:
  • 112
  • Established Year:
  • 1993
  • Brands:
  • Yinghe
  • OEM:
  • YES
  • ODM:
  • YES
  • R&D Department:
  • YES
  • Factory Location:
  • Guangzhou, Guangdong, China
  • Type of Machinery:
  • Advertisement Machine
  • Production Leadtime:
  • 5-7 days
  • Certificates:
  • CE
  • Strengths:
    1. CE certification
    2. high quality
    3. best after-sell-service
    4. one-stop service(machine,consumable,spare parts)
    5. low price
