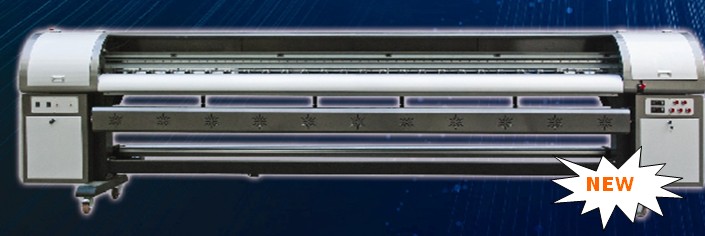

Solvent printer

Item Specification
Model YH3304 / YH2204 YH3306 / YH2206 YH3308 / YH2208
Printhead KONICA 512MN
Number of Printhead 4 6 8
Maximum Print Width 3m / 2m
Print Speed
2pass(720*720) 22sqm/hr 22sqm/hr 45sqm/hr
2pass(360*720) 39 sqm/hr 39sqm/hr 80 sqm/hr
3pass(720*1080) 16 sqm/hr 16 sqm/hr 34 sqm/hr
3pass(360*1080) 34 sqm/hr 34 sqm/hr 69 sqm/hr
4pass(720*720) 10 sqm/hr 10 sqm/hr 21 sqm/hr
4pass(360*720) 21 sqm/hr 21 sqm/hr 43 sqm/hr
6pass(360*1080) 15 sqm/hr 15 sqm/hr 31 sqm/hr
8pass(360*1440) 11 sqm/hr 11 sqm/hr 23 sqm/hr
Color CMYK CMYK Lc Lm CMYK
Media Paper, Advertising Banner, PVC, Mesh Fabrics, Vinyl
Maximum Print Quality 14 PL
1440 dpi
Auto Media System Equipped
Auto Cleaning System Positive Pressure Cleaning (Vacuum Cleaner Optional)
Spray in Idel Function
Image Format Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF
Color Management Superior ICC Profile
Work Flow RIP and Print at the same time/ Print after RIP
Print Interface USB2.0
Ink Type Solvent Based Ink
Software Photo Print, Inwear Edition
Work Station Microsoft Windows 2000 or Windows XP
Operating Environment 220V~(+10%)>15A,50Hz/60Hz
Package size Length: 4.58meters; Width: 0.78meters; Height:1.5meters
