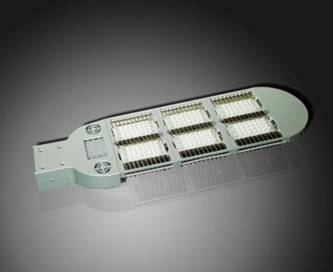

Wh-st200s
Wh-st200sContinuous Selling Item
Wh-st200s
Input Voltage 100-240V AC
Frequency Range 47~63Hz
Power Factor(PF) ＞0.92
Power Efficiency >87%
Working Voltage 24V DC
LED Consumption 168w
Power Supply Consumption 30W
LED Luminous Efficiency ≥130lm/w
Beam Angle The Horizontal Axis：120°
The Vertical Axis ： 60°
Lamp’s Flux 19,600lm
Color Temperature 3,000~6,000KColor
Index(CRI)Ra ＞75
Junction Temperature(Tj) 60 ℃ ±5 %( Ta=25℃)
Working Temperature -30 ℃ ~ 50 ℃
Working Humidity 10%~90%
Working Life 50,000 Hrs
Frequency Range 47~63Hz
Power Factor(PF) ＞0.92
Power Efficiency >87%
Working Voltage 24V DC
LED Consumption 168w
Power Supply Consumption 30W
LED Luminous Efficiency ≥130lm/w
Beam Angle The Horizontal Axis：120°
The Vertical Axis ： 60°
Lamp’s Flux 19,600lm
Color Temperature 3,000~6,000KColor
Index(CRI)Ra ＞75
Junction Temperature(Tj) 60 ℃ ±5 %( Ta=25℃)
Working Temperature -30 ℃ ~ 50 ℃
Working Humidity 10%~90%
Working Life 50,000 Hrs
- Place of Origin:
- China
- Brand:
- Winghing
- Payment Terms:
- ;T/T
