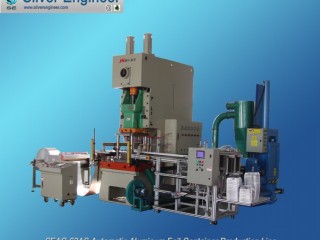

Foil Container Production Line

The Aluminum foil container making machine SEUT-63T is the perfect one to manufacturing Aluminum foil food container,.
Includes
1, Automatic feeder (Optional : MCU or Panasonic, Mitsubishi PLC)
2, Roll Feeder
3, High accuracy press
4, Great Mould
5, Conveyor/Auto Stacker(optional)

Specification:
1. Import Frequency Converter and PLC
2. Raw material: foil thickness: 0.04mm ~0.25mm, 3003,3005, 8011 etc.;
3. Pneumatic core shaft: 76/152mm(3inch/6inch Optional )
4. Maximum diameters of the Aluminum foil roll: 700mm
5. Maximum breadth of the Aluminum foil roll: 800mm
6. Working speed: 35~65 pcs/min
The Foil Container Production Line
Total Power :13kw
Net weight :9,oookg
Total line size:6000x2600x3100mm
Compressed air needed: 0.5~0.8 Mpa (prepared by the customer)

Technical Data:
Maximum container size : 550x400x94mm
Slide block stroke: 180~240mm
Work plate dimension: 1000x900mm
Mould handle hole dimension : 50x80mm(diameterxdepth)
