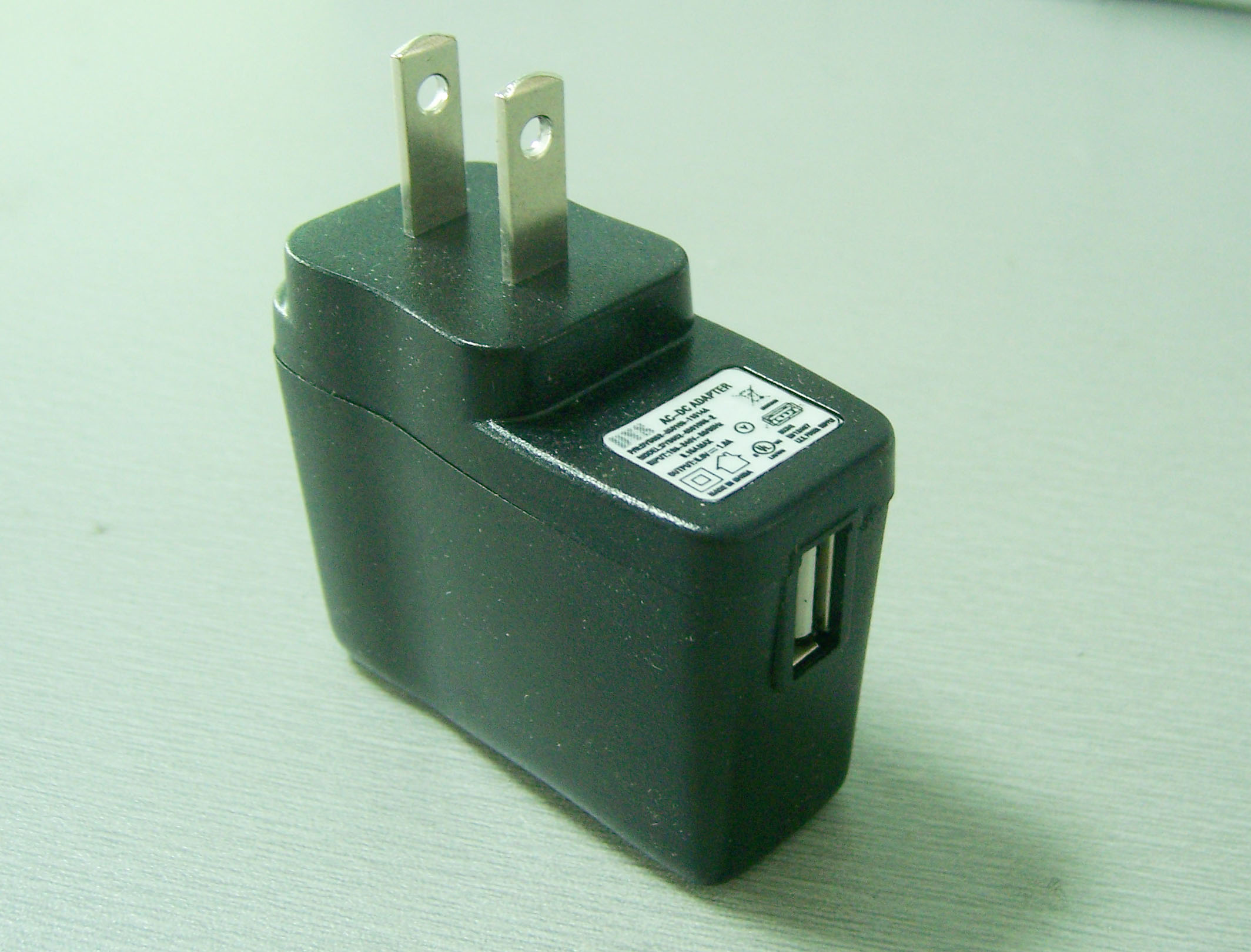

Usb Ul Plug Ac-dc Adapter With Output 5.0v

This is a series of general purpose AC/DC adapters which convert 100Vac-240Vac to astabilized DC voltage of 5.0V with rated output current of 1000mA. Please connect the electric power first and then add the load when use this sps. The adapter meets the requirement for lead free and RoHS.

Applications:
*Mobile Phone Charger
*Telecommunication Equipment
*Consume Electronics

Features
*USB Tpye and Cable Type Optional
*Low Power Consumption
*Built - in Class B EMI Filter
*Meet CEC
*Over-Current Protection
*Short Output Protection

Electrical Specifications
*Input Rating Voltage: 100-240V AC
*Input Frequency : 50-60Hz
*Input Min Voltage: 90V AC
*Input Max Voltage: 264V AC
*Efficiency : The Min efficiency shall be 68.17% at 115Vac/230Vac input and output full load.
*Input Current: The Max input shall be less than 0.15A.
*Input In-rush Current: Limited to 50A
*Input leadkage Current : Not exceed 0.25mA

*Output : +5.0V
*Output Current Range: Min 0.0A- Max 1.0A
*Output Voltage Range: MIn 4.70V- 5.30V
*Ripple&Noise: Max 300mVpp

Environmental Specifications
*Operating Temperature: 0-40 degree @ Max.Load
*Non-operating Temperature: -20 to 60 degree
*Humidity : 5% to 95% Non- condensing

Safety Standard
* UL60950
