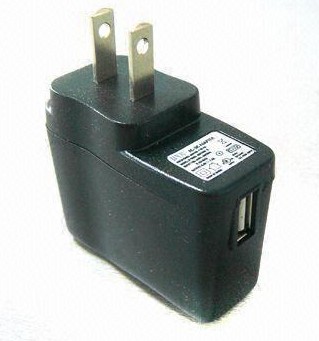

5w Ac-dc Power Adapter

Series of general purpose AC/DC adapters which convert 100 to 240V AC to stabilized DC voltage of 5.0V with rated output current of 1,000mAh
Connect the electric power first and then add the load when use this sps
Compliant with RoHS Directives
Applications:
Mobile phone charger
Telecommunication equipment
Consume electronics
Features:
USB type and cable type optional
Low power consumption
With built-in class B EMI filter
With CEC-approved
Over-voltage protection
Short-circuit protection
Electrical specifications:
Input rating voltages: 100 to 240V AC
Input frequencies: 50 to 60Hz
Input voltages (minimum): 90V AC
Input voltages (maximum): 264V AC
Efficiency (minimum): 68.17% at 115/230V AC input and output full load
Input current (maximum): less than 0.15A
Input in-rush current: limited to 50A
Input leakage current: not exceed 0.25mAh
Output: 5.0V
Output current range: (minimum) 0.0A to (maximum) 1.0A
Output voltage range: (minimum) 4.70 to 5.30V
Ripple-and-noise: (maximum) 300mVpp
Environmental specification:
Operating temperatures: 0 to 40°C at maximum load
Non-operating temperatures: -20 to 60°
Humidity: 5 to 95% (non-condensing)
Safety standard: UL60950
Net weight: about 44g
Dimensions: 59 x 25.7 x 64.5mm
Note: USB type and cable type is optional
