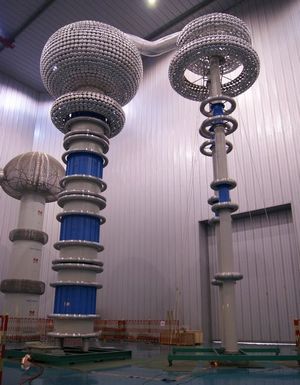

Ac Resonant System

Main components:

* HV reactor
Series Resonant Series and Parallel Resonant Series Resonant Series and Parallel Resonant
insulating-case tank-type insulating-case tank-type
up to 1600kV up to 400 kV up to1600kV up to1600 kV
up to 56000 kVA up to 14000 kVA up to 56000 kVA up to 14000 kVA
up to 35 A up to 35 A up to 35 A up to 35 A

* HV power filter (also Capacitive Voltage Divider)
* Exciter transformer
* Voltage regulator
* Control and Measuring System (manual operation or computer-aided automatic systems)

Special Series:

Series YDX
Tank-type
Up to 55 kV
Up to 1500 KVA

Additional features and accessories:

* Resonant circuits with variable frequency
* low voltage power filter
* Partial discharge (PD) measuring system including blocking impedance)
* Compressed gas capacitor
* Capacitance and dissipation factor measuring instrument
* Moveable design
* Made solution upon customer's request
