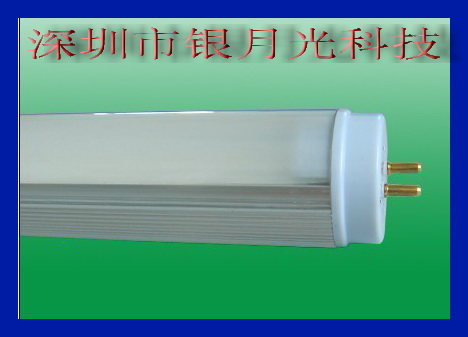

10w Led Tube

SL-TS-610
Product Parameter
Name: 600MM T8 / T10 LED3528 Tube 10W
Model: SL-TS610
Power Consumption: 10W
Flux: WW: 700-800 lm; DW: 750-850 lm
Input Voltage: 80~125VAC OR 190~240VAC
Frequency: 47-63HZ
Lamp Base: G13
Light source: Cree/ Epistar
LED Qty: 144pcs
Beam Angle: 120 degree
Color Temperature: 2800-8000k
Certificate: CE, RoHS

Detailed Product Description
*Lumen: WW: 700-800 lm; DW: 750-850 lm
* Power factor: >0.85
* CCT: WW: 2700-3700K, DW: 3700-5000K, CW: 5000-8000K
*Cover: milky cover, transparent cover, frosted cover
* Warranty: 3 Years
*Operating temp.: -30 - 40ºC
*Color rendering index: Warm white: 80; Daylight white & Cool white: 75
*Circuit protection: Over-current & Short-circuit & Over-voltage & High voltage surges Protection
*Safety testing: EN60598 (Pass 3750 Vac 10mA 60 Ses)
*Lifespan: 50000hrs

Applications: Meeting room, hotel, restaurant,Exhibition, shops

LED Tube T8/T10 by SMD, DIP
Specifications
1. CE&RoHS
2 8W~30W
3. T8, T10, 600mm, 1200mm,1500mm mm
4. CCT: 2800-8000K
5. LED Type: SMD3528, DIP
6. Luminous: 100-110 lm/w
7. Cover: milky cover, transparent cover, frosted cover
8. Warranty: 3 Years

Others:
Model No. Light source LED type Lumen power(w) Voltage(V) Work temperature Dia(mm)
SL-TS-608 120pcs SMD3528 700-850 lm 8w AC110V/220V -20°c~+40°c 26&30
SL-TS-618 240pcs SMD3528 1700-1800 lm 18w AC110V/220V -20°c~+40°c 26&30
SL-TS-610 144pcs SMD3528 750-850 lm 10w AC110V/220V -20°c~+40°c 26&30
SL-TS-620 288pcs SMD3528 1550-1700Lm 20w AC110V/220V -20°c~+40°c 26&30
