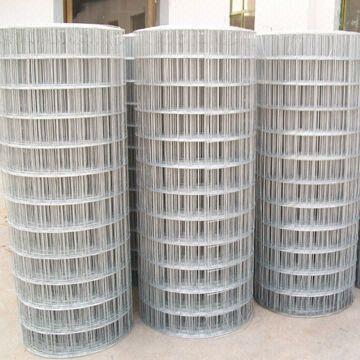

Welded Wire Mesh

Galvanized Welded Wire Mesh Panel
Electro galvanized welded wire mesh panel
Hot Dipped Galvanized welded mesh panel
PVC Coated Welded Wire Mesh panel
Stainless steel welded wire mesh pane
smooth and trim mesh surface, solid and uniform structure and superior integral performance, it won't loosen even subject to local cutting or pressure, It has the characteristics of corrosion-resisting and oxidation-resisting.
Use: welded wire mesh is extensively used in industry and agriculture construction,transportation and mining for all such purposes as poultry houses, egg baskets,runway enclosures, floor heating draining rack, fruit drying screen, fence, fruit drying screen,fence and other industries .

Mesh Wire Diameter
In Inch In MM Wire Gauge In MM
1/4" x 1/4" 6.4mm x 6.4mm 22BWG-24BWG 0.7mm-0.6mm
3/8" x 3/8" 10.6mm x 10.6mm 19BWG-22BWG 1.0mm-0.7mm
1/2" x 1/2" 12.7mm x 12.7mm 16BWG-23BWG 1.6mm-0.6mm
5/8" x 5/8" 16mm x 16mm 18BWG-21BWG 1.2mm-0.8mm
3/4" x 3/4" 19.1mm x 19.1mm 16BWG-21BWG 1.6mm-0.8mm
1" x 1/2" 25.4mm x 12.7mm 16BWG-20BWG 1.6mm-0.9mm
1" x 1" 25.4mm x 25.4mm 14BWG-21BWG 2.0mm-0.8mm
11/2" x 11/2" 38mm x 38mm 14BWG-19BWG 2.0mm-1.0mm
1" x 2" 25.4mm x 50.8mm 14BWG-16BWG 2.0mm-1.6mm
2" x 2" 50.8mm x 50.8mm 12BWG-16BWG 2.6mm-1.6mm
