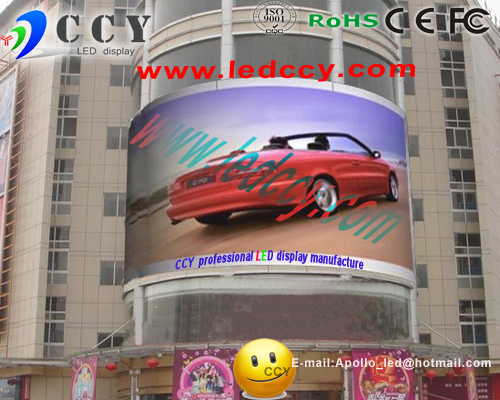

outdoor led display

Product No. P10 P12 P16 P20 P25
Physical pixel pitch 10mm 12mm 16mm 20mm 25mm
Virtual pixel pitch 5mm 6mm 8mm 10mm 12.5mm
Physical pixels per sqm 10000 6944 3906 2500 1600
Virtual pixels per sqm 10000*4 6944*4 3906*4 2500*4 1600*4
Pixel constitution 1R1PG1PB 2R1PG1PB 2R1PG1PB 2R1PG1PB 2R1PG1PB
Cabinet size 640 * 480mm 768 * 576mm 1024 * 768mm 1280 * 960mm 1000 * 800mm
Cabinet weight 25kg 35kg 55kg 70kg 50kg
Cabinet resolution 64 * 48pixels 64 * 48pixels 64 * 48pixels 64 * 48pixels 40 * 32pixels
Best viewing distance 10-150m 12-200 16-250 20-300 25-320
Max. power consumption 900W 650W 900W 670W 430W
Ave.power consumption 225W 160W 225W 160W 110W
Brightness ≥6000CD/m2 ≥6000CD/m2 ≥6800CD/m2 ≥6500CD/m2 ≥5500CD/m2
Driving method 1/2scan constant current driving Static constant current
Best viewing angle Horizontal: ≥140°; Vertical: ≥120°
Frame frequency ≥60Hz/s
Refresh rate adjustable from 10Hz to 3000Hz
color 281 trillions
Input voltage AC 110 or AC220 V ±10% ，50 to 60Hz
MTBF 10,000 hours
Life-span 100,000 hours
Ingress protection Front IP65
Working environment Temperature: -20℃－50℃; Humidity: 10%－90%RH
