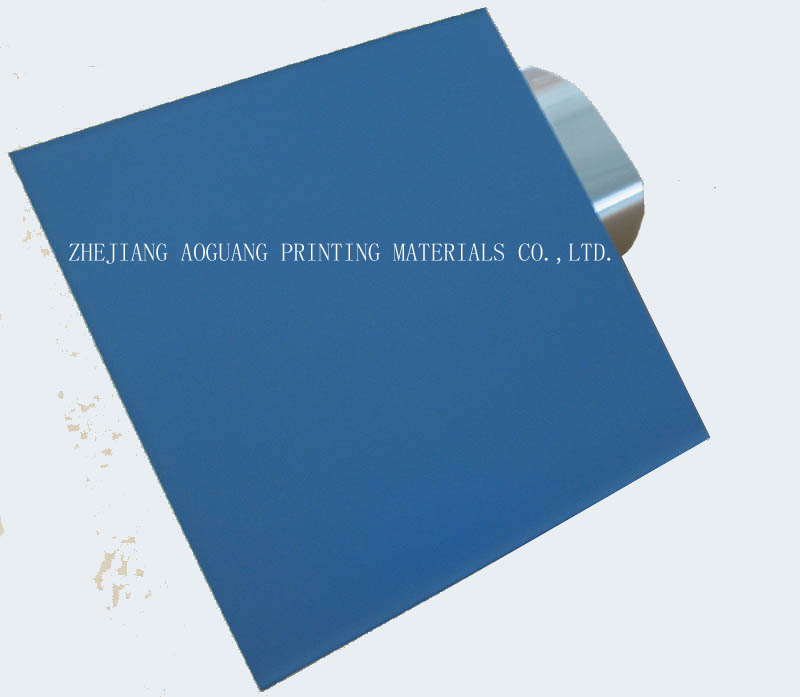

Ctp (thermal Plate)
Ctp (thermal Plate), 37013023Item Code / Model Number:
37013023
Ctp (thermal Plate)
Product Description
Features:
Plate type: Thermal positive CTP plate
Substrate Electro-chemically grained and anodized aluminum
Gauge 0.15mm, 0.25mm, 0.3mm, 0.40mm
Alloy Standard 1050 alloy Spectral sensitivity 830nm Sensitivity 120-140mJ/cm2
ResolutionDot reproduction 1%-99% at 200lpi
Coating color: Blue
Thermal Platesetters 830nm laser CTP Platesetter
Accredited Developers: Kodak developer and Agfa developer
ProcessingDeveloper temperature: 23° C-28° C
Developing time: 30-45 seconds
Baking230° C for 2-5 minutes
Run length Unbaked over 50, 000
Baked over 200, 000
Shelf life12 months
Storage and handling: Plates should be stored away from excessive cold, heat and humidity. Plates should be handled with care.
Features:
Plate type: Thermal positive CTP plate
Substrate Electro-chemically grained and anodized aluminum
Gauge 0.15mm, 0.25mm, 0.3mm, 0.40mm
Alloy Standard 1050 alloy Spectral sensitivity 830nm Sensitivity 120-140mJ/cm2
ResolutionDot reproduction 1%-99% at 200lpi
Coating color: Blue
Thermal Platesetters 830nm laser CTP Platesetter
Accredited Developers: Kodak developer and Agfa developer
ProcessingDeveloper temperature: 23° C-28° C
Developing time: 30-45 seconds
Baking230° C for 2-5 minutes
Run length Unbaked over 50, 000
Baked over 200, 000
Shelf life12 months
Storage and handling: Plates should be stored away from excessive cold, heat and humidity. Plates should be handled with care.
- Place of Origin:
- China
- Brand:
- Aoguang
- Packing:
- export standard packing
- Payment Terms:
- L/C;T/T;Cash;D/P
- Delivery Time:
- 15 days
- Min Order Quantity:
- 5000m2
- Standard / Certificates:
- ISO9001:2000
- Keywords:
- ctp, thermal plate, digital plate
