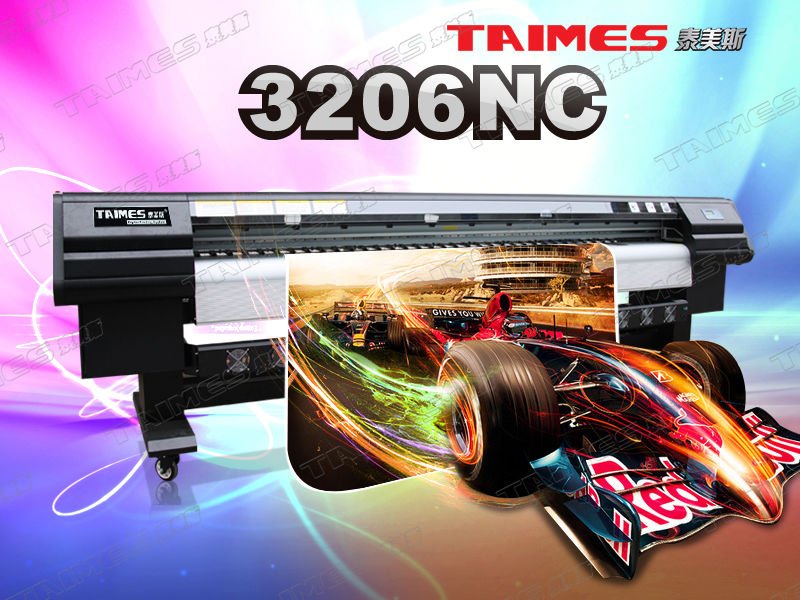

Taimes 3206nc Solvent Printer

TAIMES 3206NC SOLVENT PRINTER
(1X6 SEIKO Spt-1020/35pl printheads, 54~107 sqm/hour, Leadshine servo motor, Hiwin Rails)
Product Introduction (TAIMES 3206NC SOLVENT PRINTER)
Max print width: 3200mm (10.5ft)
Print head: SPT 1020-35PL
Max Media Width: 3300mm (10.8ft)
Maximum Resolution: Up to 720dpi
Print Speed: 54-107sq.m/h (581~1,152sq.ft/h)
Ink type: Solvent ink / ECO Ink
Colors: CMYKLcLm
Product Weight: 680kgs (1,499lbs)
Shipping Weight: 800kgs (1,764lbs)

Output (sqm/h) Print Mode Standard Output (sq.m/h)
360x360dpi 1pass 107
240x720dpi 2pass 76
360x720dpi 2pass 54
Ink Type : Solvent Ink / ECO Ink
Color : 6 Colors (C, M, Y, K, Lc, Lm)
Capacity : 5L Per Main Tank of Each Color
Ink Supply System : Low Ink Detector, Auto or Manual Ink Supply System
Media Width : 3300mm (10.8ft)
Type : Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Auto Media Feeding System Equipped ( Max. Media Weight 80kg )
Auto Cleaning System Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Pre-heating & Drying System Equipped(Drying System Optional)
Clamp Equipped
Print Interface USB2.0
Printhead Height 2 to 4 mm Above Media Adjustable
RIP Software Maintop , UltraPrint , PhotoPrint
Input Power AC 220V ,50Hz
Machine Dimension L4,360x W790 x H1,170 mm; Net Weight: 680Kgs (1,499lbs)
Package Dimension Fully assembled: L4,470 x W880 x H1340 mm; Gross Weight: 800Kgs (1,764lbs); Two units in one 20 feet container
Arms separated: L4930 x W1090 x H1100 mm; Gross Weight: 800Kgs (1,764lbs); Four units in one 20 feet container
Operation Environment Temperature: 20~28 oC Humidity: 40%~60%

TAIMES 3206NC SOLVENT PRINTER
