X Ray Baggage Inspection Scanner Security Equipment

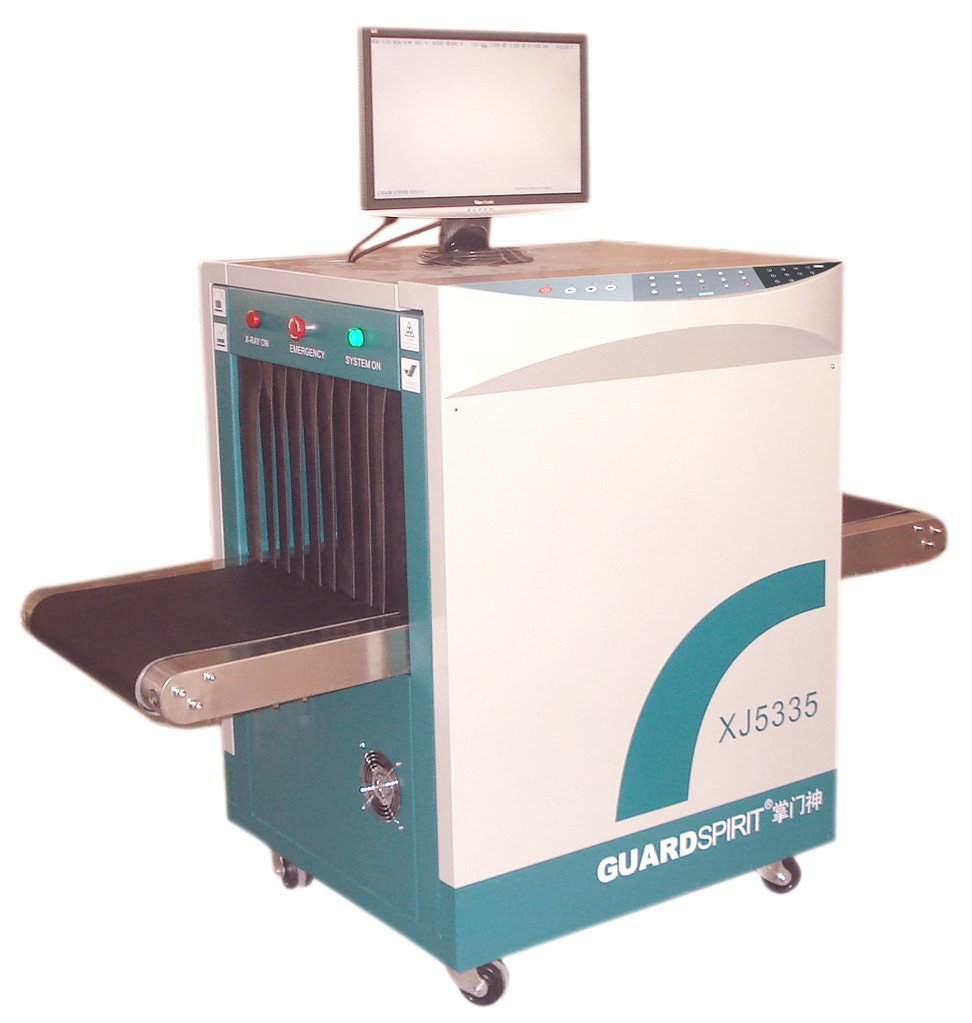

XJ5335 X ray luggage inspection scanner

Parameter:
*Tunnel Size……………..530mm(W)*350mm(H)
*Load Weight……...........50Kgs
*Conveyor Speed……….0.2-0.23m/s
*Radiation Leakage…….0.10 μG/h
*Penetration…………….34mm steel
*X-ray resolution…...40WAG
X-Ray Generator:
*X-ray Beam Direction……From bottom
*Beam Divergence……….. 80°
*Tube Voltage……………...80-160Kv
*Electronic Current…………0.2-1.25mA
*Cooling……………………Sealed oil cooling + 100% Dutycycle
Image Function:
*X-ray Converter Arrangement…. …Dual Energy L-shaped photodiode array detector
*Inorganic/Organic Stripping…… …..Organic substances display in Orange, Inorganic
substances display in blue, mixtures display in green
*Maximum Image Resolution………1024*768
*Image Storage……………………100,000pcs
*Image Display Color……………….Black /White & Color
*Grey Level…………………………65536
*Zone & Zoom…………………... ..1-9 image zones, 2,4,8 times zooming
*Other Function……………………Alarm, Review, Density Enhancement, Negative/positive image,
Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection,
Dangerous Alarm, System Failure Alarm etc…
Working Environment:
*Work Temperature & Humidity…. …0°C~+45°C/ 20%~95%(Non Cooling),
-10°C~+45°C/ 5%~95%(Optional)
*Storage Temperature & Humidity…. -40°C~70°C/ 5%~95%(Non Cooling)
*Power………………………………….220VAC(+10%~-15%,,50Hz±3Hz)
