insulation piercing connector

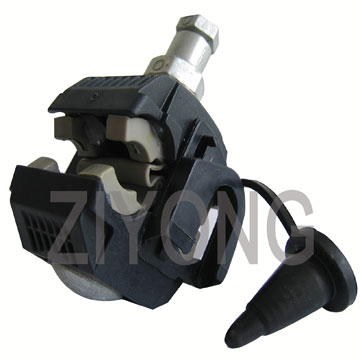

Insulation piercing connector
Application:
1. low voltage overhead lines
2. Building Distribution System
3. low-voltage lines into households
4. streetlights distribution system and so insulated cable connecting branch

Insulation piercing connector (ipc) has waterproof,high insulation strength features.It can resistant to 4kv 1min under water.
The quality of "JMA"series have reached the advanced international level.It is much better than that of others in China."JMA" series products have been widely used in power system in various environment.It is proved that "JMA" series products can take the place of the imported IPC utterly in similiar types.


Product Feature
Insulation piercing connector
fire resistant, waterproof,anti-UV,corrosion resistant
CE.ISO9001
with standing voltage 4kV 1min under water

Specifications:
Type Main Branch
JMA mm2 mm2
JMAEP 6-95 1.5-10
JMA2-95 16-95 4-35(50)
JMA2-150 50-150 4-35(50)
JMA2-185 50-185 6--16
JMA3-95 25-95 25-95
JMA4-150 50-150 50-150
JMA185 50-185 50-150
JMA240 95-240 95-240
JMA400 120-400 95-240
JMA 6 120-240 16-120
JMA-1 35-70 6-35
JMA-2 35-150 35-150
