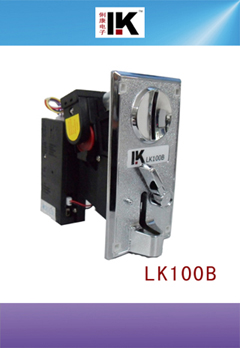

LK100B Front Spring to reject coin selector

LK100B Front Spring to reject coin selector
1、Take out the plastic coin from the slot, put into your coin;
2、Choice NO/NC (on/off) switch which is COIN signal.
3、On panel，choice switch SW2 which is COIN signal; 20ms is quick signal, suit the machine which need quickly throwing coin;40ma is need middle-quick signal, suit normal machine; 60ms is slow signal, suit normal fun machine;
4、VR switch is sensitivity control for coin filtrating, clockwise (+) turn, it accepts large tolerance coin, anticlockwise (-) turn, it just accepts small tolerance coin;
5、If the coin is not easy to be passed on Exactness position of SW3, please transfer SW3to normal position, and adjust VR to suitable position;
6、Connect:
Grey wire----Meter
Red wire---DV+12
White wire----COIN signal
Black wire-----GND
Grey wire-----Meter

Function):
1、Prevent false coin
2、Counter connector available
3、Suitable all the coins diameter and width
4、Pulse signal adjustable 20/40/60

Product parameters：
Coin Diameter: 18 mm ~ 31 mm
Coin Thickness: 1.2mm ~ 2.4mm
Voltage: DC 12V ±10%
Currents: 70mA -700 mA
Temperature:-15℃~+75℃
Package：30pcs/box
Dimension (D × W × H): 455×340×272
G．W）：12.3kg
Availability：5000pcs/week
