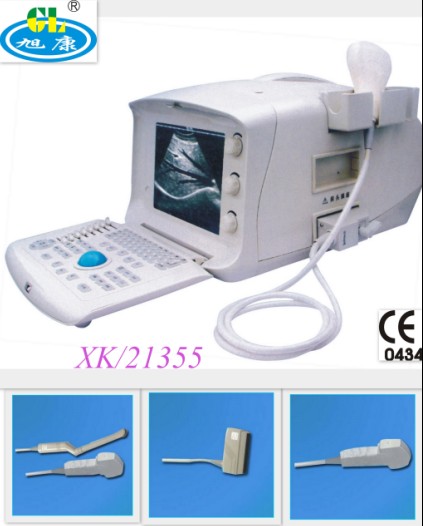

Digital Portable Ultrasound Scanner (ce And Iso)

Refer to the diagnosis :

Abdomen organs (liver, gallbladder, pancreas, spleen, stomach),uterus, bladder, and heart, etc. Efficiency and quality reach the level of internal and external congener products.

Measure:
distance, perimeter, area, heart rate, gestational weeks(GS, CRL,BPD, HC, FL, AC),foetus weight, etc.

Characters display:
exact time, date, area, scanner depth, probe type, frame correlation coefficient, focus combination. It can mark medical record number, sex, age, etc.

Imaging Processing:

Partial zoom in real time, gray curve control, STC curve, edge enhancement, dynamic range, frame correlation, 256 gray scale, image reverse function
Pre-processing: multi-segments TGC adjustment, frame correlation, image direction
Post-processing: left/right, up/down,
Zoom: magnification (4 steps)
Cine loop: 256 frames
Software Functions:

General measurement: distance, circumference, oval, trace, volume
Obstetric measurement soft: GS, CRL, BPD, AC, HC, FL, AFI, EDD, and calculating fetus weight, pregnancy week, fetal physiological rating according to the previous measurements
Peripheral Ports:

USB port
VGA port
PAL-D video output

Optional probes
3.5Mhz electronic convex /linear array probe
7.5Mhz high-frequency linear array probe,
6.5 Mhz intra-cavity body probe
