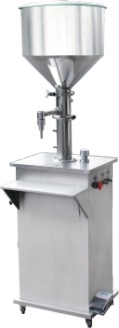

Standing Pneumatic Paste Filling Machine
Standing Pneumatic Paste Filling MachineItem Code / Model Number:
Standing Pneumatic Paste Filling Machine
This machine is suitable to measurably fill the ointment materials with high viscosity and poor fluidity, as well as liquid. It does the filling pneumatically, its hopper and the cylinder both are thermally preserved with electrically heated circulating water. The hopper is equipped with a frame mixing system. The machine is easy to clean and operate, conforming to GMP standards.
The machine is pneumatic controlled by foot, easy to operate(with automatic filling machine) .
Main Technical Parameters
Type DGJ-III
Air Pressure 0.6-0.8M P a
Air Consumption ≤ 0.1 m 3 /min
Filling Volume 30-500 ml
Productivity 1 0- 3 0pcs/min
Dimension (L ×W×H) 4 00 ×300×1700 mm
Filling accuracy /precision ±1％
material Stainless steel
Configuration:
1. Adopt Pneumatic control
2. Manual can instead of Pneumatic control
3. Filling scale can be adjustable by the way of number display
The machine is pneumatic controlled by foot, easy to operate(with automatic filling machine) .
Main Technical Parameters
Type DGJ-III
Air Pressure 0.6-0.8M P a
Air Consumption ≤ 0.1 m 3 /min
Filling Volume 30-500 ml
Productivity 1 0- 3 0pcs/min
Dimension (L ×W×H) 4 00 ×300×1700 mm
Filling accuracy /precision ±1％
material Stainless steel
Configuration:
1. Adopt Pneumatic control
2. Manual can instead of Pneumatic control
3. Filling scale can be adjustable by the way of number display
- Place of Origin:
- China
- Brand:
- Xinyou
- Other Price Terms:
- 30 %by T/T In advance deposit, 70% balan
- Packing:
- wooden case
- Payment Terms:
- L/C;T/T;Cash
- Payment Remarks:
- 30 %by T/T In advance deposit, 70% balance by T/T before delivery.
- Delivery Time:
- 20 days
- Min Order Quantity:
- 1set
- Standard / Certificates:
- ISO9001:2000 international certification
- Keywords:
- paste filling machine
