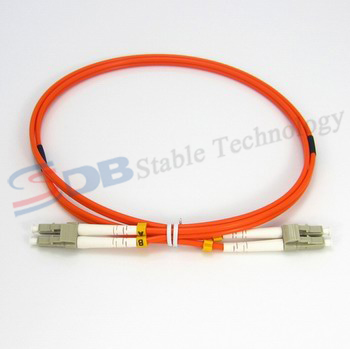

Duplex Mm Lc-lc Fiber Optic Patch Cord

fiber optic components, fiber optic patch cord, fiber optic adaptor, fiber optic connector, fiber optic attenuator, fiber optic splitter, fiber optic coupler, fiber optic jumpers


Fiber Optic Patch Cords:

The fiber optic patch cords are mainly used on patch panel or for the connection between outlets and terminal equipments. The quality of connectors and fibers are mainly determined by the insertion loss and return loss.

Applications
- High bit rate data transmission
- Telecommunications
- Testing instruments
- Active device terminations
- LAN/WAN
- FTTX.

- SM & MM available
- Standard & custom configurations
- Meets Telecordia-GR-326-CORE specifications
- Low insertion loss
- Ultra low back reflection
- For 3.0mm, 2.4mm, 2.0mm jacket or 900μm buffer.


Technical Data:
- Insertion loss:
SM: ≤0.2dB
MM: ≤0.5dB
- Return loss:
PC polish: ≤35dB
UPC polish: ≤50dB
APC polish: ≤65dB
- Each test insertion loss changes:
- Interchangeable test: ≤0.2 dB
- The vibration test: ≤0.1 dB (10-60Hz, 1.5 mm amplitude)
- Tensile tests: ≤ 0.1 dB (0-15Hg tension, φ 0.9 mm fiber except)
- High temperature testing: ≤0.2 dB (+ 85 ° c for 100 hours),
- Low temperature test: ≤0.2--40 degrees Celsius (dB for 100 hours),
- The temperature cycling tests: ≤ 0.2 dB (- 40 ~ 85 ° c + 5 times),
- Humidity test:≤ 0.2 dB (+25 ° ~ + 65 ° c, relative humidity 93%, 100 hours)
