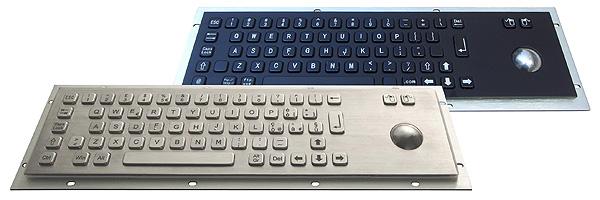

Ip65 Industrial Kiosk Keyboard With Trackball(x-bp66b)

66 keys vandal proof stainless steel keyboard with integrated 38mm stainless steel tracker ball, with carbon-on-gold key switch technology for fast and accurate data input, back panel mounting. Anti-scratch and durable electroplated titanium black panel and industrial black phenolic ball are available.

MODEL NO.: X-BP661B
DIMENSIONS: 392.0mm x 110.0mm (front panel)

MODEL NO.: X-BP662B
DIMENSIONS: 343.0mm x 105.0mm (front panel)

MAIN FEATURE

1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
2. Waterproof execution according to degree of protection IP65(Static) from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
3. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
4. Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.
5. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
6. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
7. Anti-scratch and durable electroplated titanium black panel and industrial black phenolic ball are available.

MECHANICAL DATA

1. Key: 66 keys, SUS304 brushed stainless steel
2. Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
3. Key travel:2.0mm
4. Tracker ball: 38mm (1.5') diameter, Resolution 440 edges/revolution. Black Phenolic Trackballs are available.
5. Front Plate: Super quality brushed stainless steel
6. Actuator/keys materials: stainless steel
7. G.W.: 2.0KGs (X-BP661B), 1.80KG(X-BP662B)

ELECTRICAL DATA

1. Supply Voltage: +5V DC +/-5%
2. Current Rating: appr. 20mA
3. Switch Contact Material: Carbon-on-Gold key switch technology
4. Interface: PS2, USB available.
5. OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

1. Operating temperature:-20C to +60C.
2. Storage temperature: -30C to +70C.
3. Operating RH: 30-90%.
4. Atmospheric pressure: 60-106Kpa.

RELIABILITY

1. RoHS Compliant, CE and FCC
2. Protection Level: IP65(front panel static)
3. Vandal resistant IK09
4. MTBF >50000H.
5. MTTR <30min.
