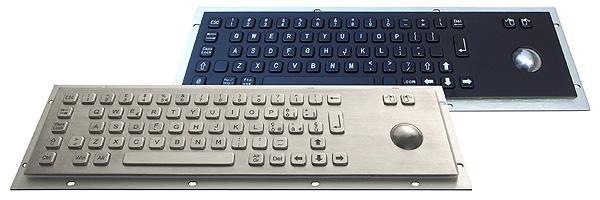

Sell Ip65 Industrial Stainless Steel Keyboard With Trackball

SERIES NO.: X-BP66B DESCRIPTION: 66 keys vandal proof stainless steel keyboard with integrated 38mm stainless steel tracker ball, with carbon-on-gold key switch technology for fast and accurate data input, back panel mounting. Anti-scratch and durable electroplated titanium black panel and industrial black phenolic ball are available. MODEL NO.: X-BP661B DIMENSIONS: 392.0mm x 110.0mm (front panel) MODEL NO.: X-BP662B DIMENSIONS: 343.0mm x 105.0mm (front panel) MAIN FEATURE 1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers. 2. Waterproof execution according to degree of protection IP65(Static) from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure. 3. Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants. 4. Anti-scratch and durable electroplated titanium black panel and industrial black phenolic ball are available. MECHANICAL DATA 1. Key: 66 keys, SUS304 brushed stainless steel 2. Key top style: Protuberant rectangular keys 3. Key travel:2.0mm 4. Tracker ball: 38mm (1.5') diameter, Resolution 440 edges/revolution. 5. Front Plate: stainless steel 6. G.W.: 2.0KGs (X-BP661B), 1.80KG(X-BP662B) ELECTRICAL DATA 1. Supply Voltage: +5V DC +/-5% 2. Current Rating: appr. 20mA 3. Switch Contact Material: Carbon-on-Gold key switch technology 4. Interface: PS2, USB available. 5. OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7, Linux, Unix, Mac OSX RELIABILITY 1. RoHS Compliant, CE and FCC 2. Protection Level: IP65(front panel static) 3. Vandal resistant IK09 4. MTBF >50000H. 5. MTTR 30min.
