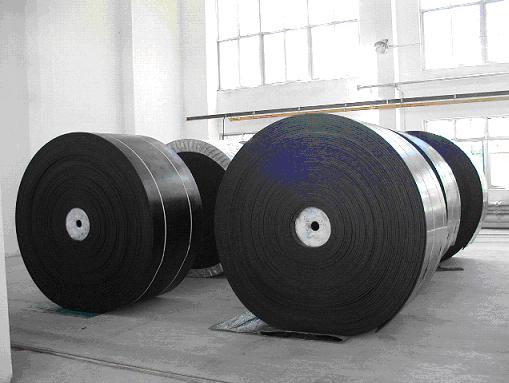

Polyester conveyor belt

Polyester conveyor belt
Construction:
"Polyester conveyor belts,also called EP conveyor belts,whose tension resistant body is canvas woven by polyester in warp and nylon-66 in weft.The belts have the characteristics of low elongation in warp and good troughability in weft,
good water resistance,good wet strength,no mould,suitable for medium,long-distance and heavy-load transportation of materials.Because of the high initial modulus of polyester,the belts can choose a relative low safety factor"
Specification and technical data of multi-ply polyester conveyor belt:
Fabric type: Polyester, EP80~EP500
No.of fabric plies: 2~10
Cover thickness: Upper 2.0~8 Lower 0~4.5
width: 300~1700
Length: 6~300m


Features:
"With the advantages of thin belt with light weight, high
tensile strength, fatigue and wear resistance, erosion
resistance of water/steam/chemical, good impact
resistance, excellent groove formation ability, low
elongation, good stability ever heated and long service
life, it’s the developing trend of fabric conveyor belt. It
is mainly used in harsh condition of long distance,
heavy-load, high-chemical corrosive etc, it is especially
suitable for transporting in moist environment.
"
Standard Of Conveyor belt
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
