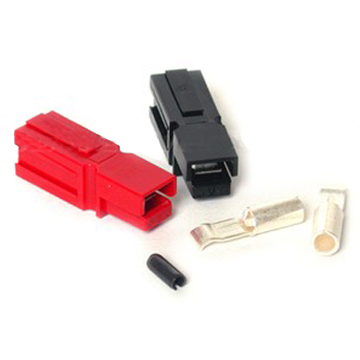

180a 600v Connector/ups Testing Plug/wire Connector

180A 600V Connector
Amperage: 180A
Voltage: 600V
Pole: 1
Wire: 1/0AWG,1AWG,2AWG,4AWG
Housing Material: Polycarbonate
Contact Material: Silver-plated copper
Spring Material: Stainless Steel
Color: Red,black,bule,green,white,yellow and etc.
Feature and benefits
Certificate: UL
10-180amps at 600 Volts AC & DC
1/0 - 20AWG
Flat-wiping silver-plated contacts
Genderless, colored, modular, polarized housing
First-mate/last-break in PP10 & PP30 (Pin & Socket)
PCB mounted versions PowerClaw
High mating cycle to 10,000
great and easy to use,easy to add on to existing power source
These connectors are small, versatile and handle as much power as you need
They interlock in several configurations and come in many colors
15A,30A,45A,these series have the same size housing ,they can interchangable,the difference is the contact barrel wire size
Application:supply power to amateur radios and battery backup sources for the setup
Certificate:UL,ROHS,CE
