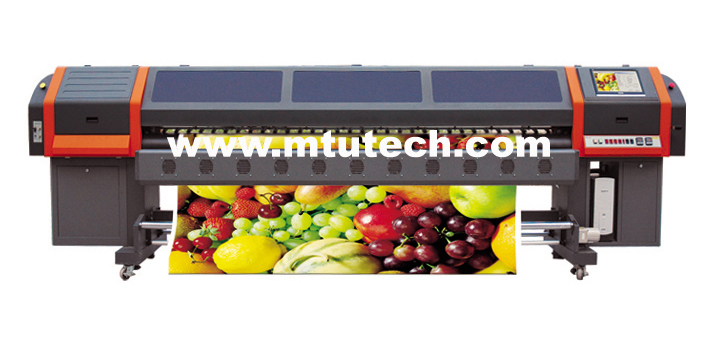

Skywalker Ultra1000D Solvent Printer


1) Adopted world famous American SPECTRA SKYWALKER-50 PL Printhead with all stainless steel nozzle plate, using life 7-10 years; Imported negative pressure system and supreme print head performance ensured the constant printing for 3 hours without jamming on conditions of no cleaning during printing.

2) Fire frequency is 16K HZ, high productivity of 120㎡/H by 2 Pass with vivid color presentation.

3)Imported AC Servo Motors and Reducers equipped X and Y axis movement systems

4)THK linear rail made in Japan, Megadyne timing belt made in Italy, Auto media width sensor.

5)Quartic ink filtrations for each color ink through American PALL filters.

6)Digital Ink Constant Temperature System reduced the cost that caused by environment temperature changing.

7)High precision mechanism processing exceeded the Industry Standard.
Performance & Technical Specification
Model Skywalker Ultra1000D
Resolution 360x150/360x300/720x150/720x300 dpi
Printhead Spectra Skywalker 128 (4/8/12/16pcs)
Printing Width 3.2m
Speed 2pass 120m2 /h
3pass 80m2 /h
4pass 60m2/h
6pass 40m2/h
Color 16.7million.CMYK (4color)
Media Media Width 3.3m Max
Media Handling Roll to Roll handling
Media Types Flex, Advertising banner, PVC, Canvas, Mesh with liner
Ink Pigment solvent based 1 year outdoor life
Image Dataformat TIFF,JPG,EPS,PDF
RIP Photoprint DX
Control Station Windows 2000/XP Workstation
Packing Size L/W/H:4.91x0.98x1.65m
G.W/N.W 980kg/780kg
