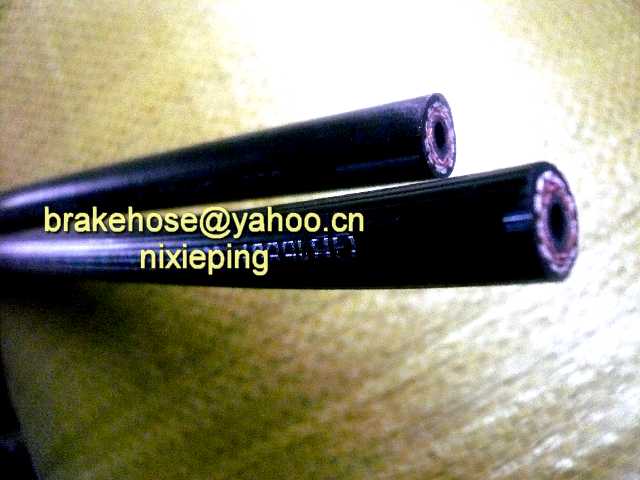

Supply Auto Brake Hose

SAE 100 R1AT / DIN EN 853 1SN STANDARD

Tube : Oil resistant synthetic rubber
Reinforcement : one high tensile steel wire braid
Cover : Abrasion and weather resistant synthetic rubber
Temperature range : -40 to +100

SAE 100 R2AT / DIN EN 853 2SN STANDARD

Tube: Oil resistant synthetic rubber
Reinforceent: two high tensile steel wire layers 2 w
Cover Compound: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +100

brake hose :
Avail in hydraulic system of all kinds of automobile and motorcycle to transfer the hydraulic power.


Commodity
brake hose
Standards
SAE J1401

Quality control
DOT, ISO9001-2008

Material
-Tube: Made of EPDM, perfectly resist oil, heat and permeation of water;
-Reinforcement: Made of high strength polyester fiber treated by special resin;
-Middle layer: By using viscosity-strengthen middle rubber between reinforcement to provide high dynamic capability
-Cover: Made of EPDM, perfectly resist heat and ozone

Brake fluid
DOT3, DOT4



Normal size
3.2mm x 10.5mm(1/8)

3.2mm x 12.5mm(1/8)

4.8mm x 12.5mm(3/16)

Special size
3.0mm x 11.0mm, 3.5mm x 10.7mm etc


Feature
Low inner cubage expansion;

Resistance of heat and ozone;

Low moisture permeation, whip and impulse;

Working temperature: -55degree to +125degree;

Burst pressure: 60Mpa.

Length/piece
10 - 50m.
