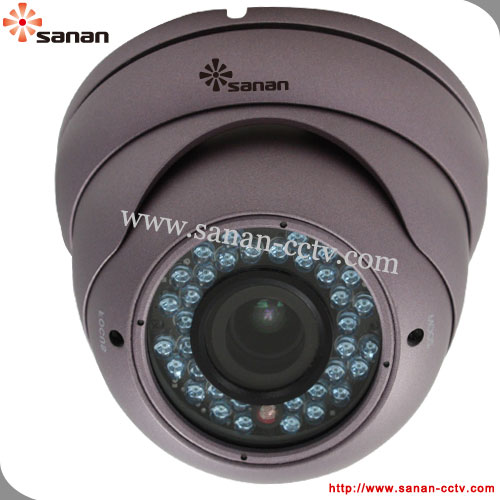

Cctv Dome Camera

* Image Sensor
1/3” SONY SUPER HAD CCD;

* Resolution
420TVL~700TVL(Optional);

* Lens
4-9mm Manual Zoom Lens(2.8-10mm Optional);

* LED
￠5mm×36PCS;

* IR Distance
30m;

* Other
3.5” Vandal-proof IR Dome Camera.




Model
SA-1809

Image Sensor
1/3” Sony SUPER HAD CCD

TV System
PAL/NTSC

Effective Pixel
PAL:500(H)×582(V)
NTSC:510(H)×492(V)
PAL:752(H)×582(V)
NTSC:768(H)×494(V)
PAL:795(H)×596(V)
NTSC:811(H)×508(V)

Horizontal Resolution
420TVL
540TVL
600TVL

Minimal Illumination
0.1Lux/F1.2 0Lux(IR On)
0.001Lux/F1.2
0Lux(IR on)

Synchronous System
Internal Synchronization

S/N Ratio
>48dB
>54dB

Electronic Shutter
1/50-1/60,000s(PAL)
1/60-1/60,000s(NTSC)

White Balance
ATW

BLC
On

AGC
Auto

Gamma Adjusting
0.45

Video Output
1.0Vp-p at 75Ω

Lens
4-9mm Manual Zoom Lens(2.8-10mm Optional)

LED
￠5mm×36PCS

IR Distance
30m

Power Supply
DC 12V

Working Temperature
-10°C~+50°C RH90% MAX

Storage Temperature
-20°C~+60°C RH90% MAX

Dimension(mm)
100mm×119mm

Weight(g)
700g
